BalTreeInRoot< R, N, K, s, n > Class Template Reference

Intrusive Binary Tree, Root. More...

#include <BalTreeIn.h>

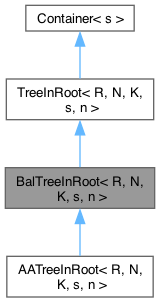

Inheritance diagram for BalTreeInRoot< R, N, K, s, n >:

Collaboration diagram for BalTreeInRoot< R, N, K, s, n >:

Public Member Functions
	BalTreeInRoot ()
	Constructor.
virtual	~BalTreeInRoot ()
	Destructor.
N *	base () const
bool	check () const override
int	compare (N const &node1, N const &node2) const
int	compareKey (N const &node, K key) const
N *	first () const
N *	last () const
unsigned	readLock (bool upgrade) const
void	readUnlock (unsigned save) const
unsigned	writeLock (bool upgrade) const
void	writeUnlock (unsigned save) const

Protected Member Functions
virtual void	add (N &node)
	Add node to our tree, note trees are sorted by the compare member function which needs to be implemented by the user.
void	add (N *node)
	Add node to our tree.
N *	find (K key) const
	find a node
N *	findMinus (K key) const
	find a node, or the node that would be just lower than this node
N *	findPlus (K key) const
	find a node, r the node that would be just above this node.
void	remove (N &node)
	Remove Node from List.
void	remove (N *node)
	Remove Node from List.

Private Types
typedef class TreeInRoot< R, N, K, s, n >	Base
typedef class BalTreeInNode< R, N, K, s, n >	Node
	Type of DListIInNode.
typedef class BalTreeInRoot< R, N, K, s, n >	Root
	Type of TreeInRoot.

Private Attributes
N *	m_base
	Pointer to root node on tree.

Friends
class	BalTreeInNode< R, N, K, s, n >

Detailed Description

template<class R, class N, class K, ContainerThreadSafety s, int n>
class BalTreeInRoot< R, N, K, s, n >

Intrusive Binary Tree, Root.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
K	The class defining the Key used to lookup Nodes in the tree.
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Invariant

From TreeInRoot:

• if m_base not nullptr:
  • m_base->m_root == this.
  • m_base->m_parent == nullptr

See also

BalTreeInNode

Note, because base class is a template, we have many forwarding functions to that base to avoid errors and warnings about thing missing.

Member Typedef Documentation

Base

template<class R , class N , class K , ContainerThreadSafety s, int n>

class TreeInRoot< R, N, K, s, n > BalTreeInRoot< R, N, K, s, n >::Base

private

Node

template<class R , class N , class K , ContainerThreadSafety s, int n>

class BalTreeInNode< R, N, K, s, n > BalTreeInRoot< R, N, K, s, n >::Node

private

Type of DListIInNode.

Root

template<class R , class N , class K , ContainerThreadSafety s, int n>

class BalTreeInRoot< R, N, K, s, n > BalTreeInRoot< R, N, K, s, n >::Root

private

Type of TreeInRoot.

Constructor & Destructor Documentation

BalTreeInRoot()

template<class R , class N , class K , ContainerThreadSafety s, int n>

BalTreeInRoot< R, N, K, s, n >::BalTreeInRoot

(

)

Constructor.

Starts us as an empty list.

~BalTreeInRoot()

template<class R , class N , class K , ContainerThreadSafety s, int n>

BalTreeInRoot< R, N, K, s, n >::~BalTreeInRoot ( )

virtual

Destructor.

Member Function Documentation

add() [1/2]

template<class R , class N , class K , ContainerThreadSafety s, int n>

void TreeInRoot< R, N, K, s, n >::add ( N & node )

inlineprotectedvirtualinherited

Add node to our tree, note trees are sorted by the compare member function which needs to be implemented by the user.

Parameters

node	The node to add to the list If node is currently on a different list it is removed before being added to the list.

If node is on the requested list, do nothing. If trying to change value and position, use resort

add() [2/2]

template<class R , class N , class K , ContainerThreadSafety s, int n_>

void TreeInRoot< R, N, K, s, n_ >::add ( N * node )

inlineprotectedinherited

Add node to our tree.

Parameters

node	The node to add to the list If node is null, Nothing is done. If node is currently on a list (even us) it is removed before being added to the list

base()

template<class R , class N , class K , ContainerThreadSafety s, int n>

N * BalTreeInRoot< R, N, K, s, n >::base ( ) const

inline

check()

template<class R , class N , class K , ContainerThreadSafety s, int n>

bool BalTreeInRoot< R, N, K, s, n >::check ( ) const

inlineoverridevirtual

Implements Container< s >.

compare()

template<class R , class N , class K , ContainerThreadSafety s, int n>

int BalTreeInRoot< R, N, K, s, n >::compare ( N const & node1, N const & node2 ) const

inline

compareKey()

template<class R , class N , class K , ContainerThreadSafety s, int n>

int BalTreeInRoot< R, N, K, s, n >::compareKey ( N const & node, K key ) const

inline

find()

template<class R , class N , class K , ContainerThreadSafety s, int n>

N * TreeInRoot< R, N, K, s, n >::find ( K key ) const

protectedinherited

find a node

findMinus()

template<class R , class N , class K , ContainerThreadSafety s, int n>

N * TreeInRoot< R, N, K, s, n >::findMinus ( K key ) const

protectedinherited

find a node, or the node that would be just lower than this node

findPlus()

template<class R , class N , class K , ContainerThreadSafety s, int n>

N * TreeInRoot< R, N, K, s, n >::findPlus ( K key ) const

protectedinherited

find a node, r the node that would be just above this node.

first()

template<class R , class N , class K , ContainerThreadSafety s, int n>

N * BalTreeInRoot< R, N, K, s, n >::first ( ) const

inline

last()

template<class R , class N , class K , ContainerThreadSafety s, int n>

N * BalTreeInRoot< R, N, K, s, n >::last ( ) const

inline

readLock()

template<class R , class N , class K , ContainerThreadSafety s, int n>

unsigned BalTreeInRoot< R, N, K, s, n >::readLock ( bool upgrade ) const

inline

References Container< s >::readLock().

Here is the call graph for this function:

readUnlock()

template<class R , class N , class K , ContainerThreadSafety s, int n>

void BalTreeInRoot< R, N, K, s, n >::readUnlock ( unsigned save ) const

inline

remove() [1/2]

template<class R , class N , class K , ContainerThreadSafety s, int n>

void TreeInRoot< R, N, K, s, n >::remove ( N & node )

inlineprotectedinherited

Remove Node from List.

Parameters

node	node to be removed. If node is not on this list, nothing will be done.

remove() [2/2]

template<class R , class N , class K , ContainerThreadSafety s, int n_>

void TreeInRoot< R, N, K, s, n_ >::remove ( N * node )

inlineprotectedinherited

Remove Node from List.

Parameters

node	Pointer to node to be removed. If node is null, operation will be ignored. If node is not on this list, nothing will be done.

writeLock()

template<class R , class N , class K , ContainerThreadSafety s, int n>

unsigned BalTreeInRoot< R, N, K, s, n >::writeLock ( bool upgrade ) const

inline

References Container< s >::writeLock().

Here is the call graph for this function:

writeUnlock()

template<class R , class N , class K , ContainerThreadSafety s, int n>

void BalTreeInRoot< R, N, K, s, n >::writeUnlock ( unsigned save ) const

inline

References Container< s >::writeUnlock().

Here is the call graph for this function:

Friends And Related Symbol Documentation

BalTreeInNode< R, N, K, s, n >

template<class R , class N , class K , ContainerThreadSafety s, int n>

friend class BalTreeInNode< R, N, K, s, n >

friend

Member Data Documentation

m_base

template<class R , class N , class K , ContainerThreadSafety s, int n>

N* TreeInRoot< R, N, K, s, n >::m_base

privateinherited

Pointer to root node on tree.

Referenced by TreeInRoot< R, N, K, s, n >::base().

---

The documentation for this class was generated from the following files:

• BalTreeIn.h
• BalTreeIn.hpp
