Container< s > Class Template Reference

Base Container Class. More...

#include <Container.h>

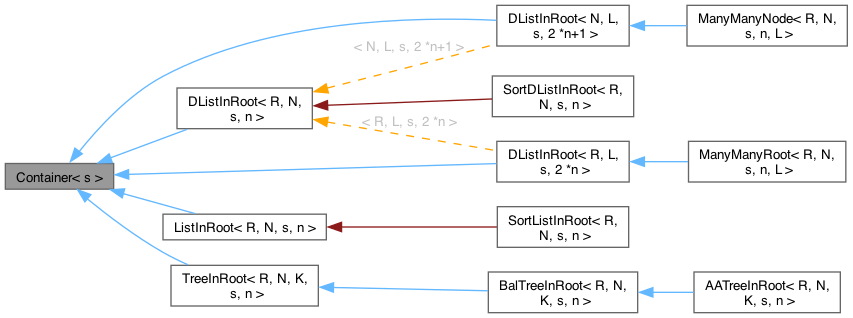

Inheritance diagram for Container< s >:

Protected Member Functions
	Container ()
	~Container ()
virtual bool	check () const =0
unsigned	readLock (bool upgradable) const
	Obtain a read lock.
unsigned	readLock (bool upgradable) const
	Under ContainerNoSafety application handles all the needed restrictions.
unsigned	readLock (bool upgradable) const
unsigned	readLock (bool upgradable) const
unsigned	readLock (bool upgradable) const
void	readUnlock (unsigned code) const
	Release the read lock that was held.
void	readUnlock (unsigned save) const
	Under ContainerNoSafety application handles all the needed restrictions.
void	readUnlock (unsigned save) const
void	readUnlock (unsigned save) const
void	readUnlock (unsigned save) const
unsigned	writeLock (bool upgrade) const
	Obtain a write lock.
unsigned	writeLock (bool upgrade) const
	Under ContainerNoSafety application handles all the needed restrictions.
unsigned	writeLock (bool upgrade) const
unsigned	writeLock (bool upgrade) const
unsigned	writeLock (bool upgrade) const
void	writeUnlock (unsigned code) const
	Release write lock.
void	writeUnlock (unsigned save) const
	Under ContainerNoSafety application handles all the needed restrictions.
void	writeUnlock (unsigned save) const
void	writeUnlock (unsigned save) const
void	writeUnlock (unsigned save) const

Private Member Functions
	Container (Container const &)=delete
	We are not copyable.
void	operator= (Container const &)=delete
	We are not assignable;.

Friends
class	ContainerNode< s >

Detailed Description

template<ContainerThreadSafety s>
class Container< s >

Base Container Class.

Provides the base locking ability for the container.

Template Parameters

s	The ContainerThreadSafety value to define the thread safety model of the Container

Note

Most of the testing of this library has been done with ContainerNoSafety

Constructor & Destructor Documentation

Container() [1/2]

template<ContainerThreadSafety s>

Container< s >::Container ( )

inlineprotected

~Container()

template<ContainerThreadSafety s>

Container< s >::~Container ( )

inlineprotected

Container() [2/2]

template<ContainerThreadSafety s>

Container< s >::Container ( Container< s > const & )

privatedelete

We are not copyable.

Member Function Documentation

check()

template<ContainerThreadSafety s>

virtual bool Container< s >::check ( ) const

protectedpure virtual

Implemented in BalTreeInRoot< R, N, K, s, n >, DListInRoot< R, N, s, n >, DListInRoot< N, L, s, 2 *n+1 >, DListInRoot< R, L, s, 2 *n >, ListInRoot< R, N, s, n >, ManyManyNode< R, N, s, n, L >, ManyManyRoot< R, N, s, n, L >, SortDListInRoot< R, N, s, n >, SortListInRoot< R, N, s, n >, and TreeInRoot< R, N, K, s, n >.

operator=()

template<ContainerThreadSafety s>

void Container< s >::operator= ( Container< s > const & )

privatedelete

We are not assignable;.

readLock() [1/5]

template<ContainerThreadSafety s>

unsigned Container< s >::readLock ( bool upgradable ) const

protected

Obtain a read lock.

While a read lock is held on a container, the container can not be changed.

Read locks will not be given while a write lock is held.

Parameters

upgradable

If called with upgradeable, then the lock can be upgradable to a write lock, and no other upgradable read lock will be granted. (Note, the code returned will need to encode the upgradable bit)

Returns

code to give to readUnlock()

Referenced by AATreeInRoot< R, N, K, s, n >::readLock(), BalTreeInRoot< R, N, K, s, n >::readLock(), DListInRoot< R, N, s, n >::readLock(), ListInRoot< R, N, s, n >::readLock(), ManyManyNode< R, N, s, n, L >::readLock(), ManyManyRoot< R, N, s, n, L >::readLock(), SortDListInNode< R, N, s, n >::readLock(), SortDListInRoot< R, N, s, n >::readLock(), SortListInNode< R, N, s, n >::readLock(), SortListInRoot< R, N, s, n >::readLock(), and TreeInRoot< R, N, K, s, n >::readLock().

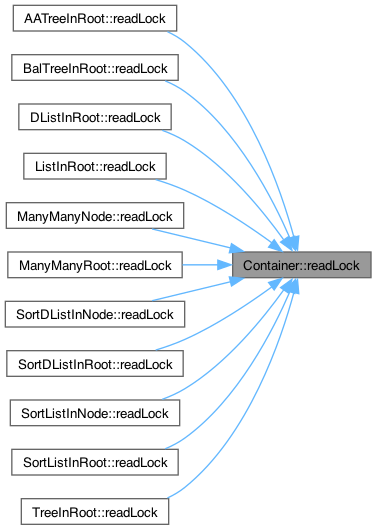

Here is the caller graph for this function:

readLock() [2/5]

unsigned Container< ContainerNoSafety >::readLock ( bool upgradable ) const

inlineprotected

Under ContainerNoSafety application handles all the needed restrictions.

readLock() [3/5]

unsigned Container< ContainerTaskOnly >::readLock ( bool upgradable ) const

inlineprotected

readLock() [4/5]

unsigned Container< ContainerTaskSafe >::readLock ( bool upgradable ) const

inlineprotected

readLock() [5/5]

unsigned Container< ContainerISRSafe >::readLock ( bool upgradable ) const

inlineprotected

readUnlock() [1/5]

template<ContainerThreadSafety s>

void Container< s >::readUnlock ( unsigned code ) const

protected

Release the read lock that was held.

Parameters

code	from writeLock();

Referenced by DListInRoot< R, N, s, n >::readUnlock(), ListInRoot< R, N, s, n >::readUnlock(), ManyManyNode< R, N, s, n, L >::readUnlock(), ManyManyRoot< R, N, s, n, L >::readUnlock(), SortDListInNode< R, N, s, n >::readUnlock(), SortListInNode< R, N, s, n >::readUnlock(), and TreeInRoot< R, N, K, s, n >::readUnlock().

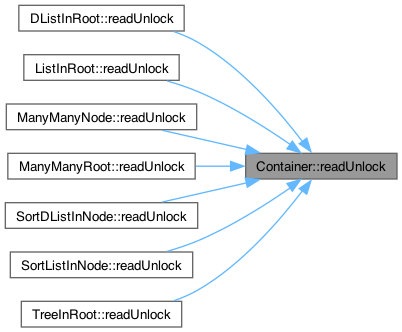

Here is the caller graph for this function:

readUnlock() [2/5]

void Container< ContainerNoSafety >::readUnlock ( unsigned save ) const

inlineprotected

Under ContainerNoSafety application handles all the needed restrictions.

readUnlock() [3/5]

void Container< ContainerTaskOnly >::readUnlock ( unsigned save ) const

inlineprotected

readUnlock() [4/5]

void Container< ContainerTaskSafe >::readUnlock ( unsigned save ) const

inlineprotected

readUnlock() [5/5]

void Container< ContainerISRSafe >::readUnlock ( unsigned save ) const

inlineprotected

writeLock() [1/5]

template<ContainerThreadSafety s>

unsigned Container< s >::writeLock ( bool upgrade ) const

protected

Obtain a write lock.

While a write is held, no other read or write lock will be created.

Parameters

upgrade

operation already has a read lock that was made with the upgradeable flag

Referenced by AATreeInRoot< R, N, K, s, n >::writeLock(), BalTreeInRoot< R, N, K, s, n >::writeLock(), DListInRoot< R, N, s, n >::writeLock(), ListInRoot< R, N, s, n >::writeLock(), ManyManyNode< R, N, s, n, L >::writeLock(), ManyManyRoot< R, N, s, n, L >::writeLock(), SortDListInNode< R, N, s, n >::writeLock(), SortDListInRoot< R, N, s, n >::writeLock(), SortListInNode< R, N, s, n >::writeLock(), SortListInRoot< R, N, s, n >::writeLock(), and TreeInRoot< R, N, K, s, n >::writeLock().

Here is the caller graph for this function:

writeLock() [2/5]

unsigned Container< ContainerNoSafety >::writeLock ( bool upgrade ) const

inlineprotected

Under ContainerNoSafety application handles all the needed restrictions.

writeLock() [3/5]

unsigned Container< ContainerTaskOnly >::writeLock ( bool upgrade ) const

inlineprotected

writeLock() [4/5]

unsigned Container< ContainerTaskSafe >::writeLock ( bool upgrade ) const

inlineprotected

writeLock() [5/5]

unsigned Container< ContainerISRSafe >::writeLock ( bool upgrade ) const

inlineprotected

writeUnlock() [1/5]

template<ContainerThreadSafety s>

void Container< s >::writeUnlock ( unsigned code ) const

protected

Release write lock.

If was from an upgraded read lock, we return to an upgradable read lock

Parameters

code	the value returned from the previous call to writeLock()

Referenced by AATreeInRoot< R, N, K, s, n >::writeUnlock(), BalTreeInRoot< R, N, K, s, n >::writeUnlock(), DListInRoot< R, N, s, n >::writeUnlock(), ListInRoot< R, N, s, n >::writeUnlock(), ManyManyNode< R, N, s, n, L >::writeUnlock(), ManyManyRoot< R, N, s, n, L >::writeUnlock(), SortDListInNode< R, N, s, n >::writeUnlock(), SortDListInRoot< R, N, s, n >::writeUnlock(), SortListInNode< R, N, s, n >::writeUnlock(), SortListInRoot< R, N, s, n >::writeUnlock(), and TreeInRoot< R, N, K, s, n >::writeUnlock().

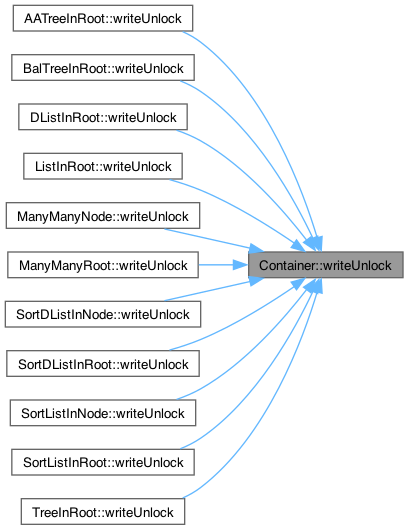

Here is the caller graph for this function:

writeUnlock() [2/5]

void Container< ContainerNoSafety >::writeUnlock ( unsigned save ) const

inlineprotected

Under ContainerNoSafety application handles all the needed restrictions.

writeUnlock() [3/5]

void Container< ContainerTaskOnly >::writeUnlock ( unsigned save ) const

inlineprotected

writeUnlock() [4/5]

void Container< ContainerTaskSafe >::writeUnlock ( unsigned save ) const

inlineprotected

writeUnlock() [5/5]

void Container< ContainerISRSafe >::writeUnlock ( unsigned save ) const

inlineprotected

Friends And Related Symbol Documentation

ContainerNode< s >

template<ContainerThreadSafety s>

friend class ContainerNode< s >

friend

---

The documentation for this class was generated from the following file:

• Container.h
