Intrusive Doubly Linked List, Node. More...

#include <SortListIn.h>

Inheritance diagram for SortListInNode< R, N, s, n >:

[legend]

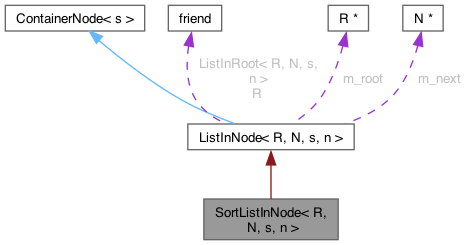

Collaboration diagram for SortListInNode< R, N, s, n >:

[legend]

Public Member Functions
	SortListInNode (R &)
	Constructor.

	SortListInNode (R *root=nullptr)
	Constructor.

	~SortListInNode ()
	Destructor.

void	addTo (R &root)
	Add ourself to a list at "natural" position.

void	addTo (R *root)
	Add ourself to a list at "natural" position.

bool	check () const override

N *	next () const
	Return pointer to next node on list.

N *	prev () const
	Return pointer to previous node on list.

unsigned	readLock (bool upgrade) const

void	readUnlock (unsigned save) const

void	remove ()

R *	root () const
	Return pointer to list we are on.

unsigned	writeLock (bool upgrade) const

void	writeUnlock (unsigned save) const

Private Types
typedef class ListInNode< R, N, s, n >	Base

typedef Container< s >	C
	The type of the Container that we are part of.

typedef class SortListInNode< R, N, s, n >	Node
	Type of DListIInNode.

typedef class SortListInRoot< R, N, s, n >	Root
	Type of DListInRoot.

Private Member Functions
void	addAfter (N &myNode, bool upgrade=false)
	Add ourself to a list after another node.

void	addAfter (N *myNode, bool upgrade=false)
	Add ourself to a list after another node.

void	addTo (R &myRoot, bool upgrade=false)
	Add ourself to a list at "natural" postion.

void	addTo (R *myRoot, bool upgrade=false)
	Add ourself to a list at "natural" postion.

void	addToEnd (R &myRoot, bool upgrade=false)
	Add ourselfs to the end of a list.

void	addToEnd (R *myRoot, bool upgrade=false)
	Add ourselves to the End of a list.

void	addToFront (R &myRoot, bool upgrade=false)
	Add ourselfs to the front of a list.

void	addToFront (R *myRoot, bool upgrade=false)
	Add ourselfs to the front of a list.

void	setRoot (C *root)
	Set our Container.

void	setRoot (R *root)

Private Attributes
N *	m_next
	Pointer to next Node in list.

R *	m_root
	Pointer to list we are on.

friend	R

Friends
class	ListInNode< R, N, s, n >

class	ListInRoot< R, N, s, n >

class	SortListInRoot< R, N, s, n >

Detailed Description

template<class R, class N, ContainerThreadSafety s, int n>
class SortListInNode< R, N, s, n >

Intrusive Doubly Linked List, Node.

Template Parameters

L	The class that will be the owner of the List. Must derive from DListInRoot<R, N, n>
N	The class that will be the nodes of the List. Must derive from DListInNode<R, N, n>
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Invariant

New:

if m_next != nullptr
- m_root->compare(node, *node.m_next) >= 0
- m_root->compare(*node.m_next, node) <= 0

From ListIn.h, ListInNode:

if m_root == nullptr
- m_nest == nullptr
if m_next == nullptr
- m_root->m_last = this;
if m_next != nullptr
- m_next->m_root == m_root
- m_next != m_root->m_first

Last Criteria is closet expression to the fact that root.m_first points to a node that other node points to as its m_next

See also: SortListInRoot

Member Typedef Documentation

◆ Base

template<class R , class N , ContainerThreadSafety s, int n>

class ListInNode< R, N, s, n > SortListInNode< R, N, s, n >::Base

private

◆ C

template<ContainerThreadSafety s>

Container<s> ContainerNode< s >::C

privateinherited

The type of the Container that we are part of.

◆ Node

template<class R , class N , ContainerThreadSafety s, int n>

class SortListInNode< R, N, s, n > SortListInNode< R, N, s, n >::Node

private

Type of DListIInNode.

◆ Root

template<class R , class N , ContainerThreadSafety s, int n>

class SortListInRoot< R, N, s, n > SortListInNode< R, N, s, n >::Root

private

Type of DListInRoot.

Constructor & Destructor Documentation

◆ SortListInNode() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

SortListInNode< R, N, s, n >::SortListInNode ( R * myRoot = nullptr )

Constructor.

Parameters

myRoot Pointer to list for node to be added to (if not NULL).

◆ SortListInNode() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

SortListInNode< R, N, s, n >::SortListInNode ( R & myRoot )

Constructor.

Parameters

myRoot list we are to be added to.

◆ ~SortListInNode()

template<class R , class N , ContainerThreadSafety s, int n>

SortListInNode< R, N, s, n >::~SortListInNode ( )

Destructor.

Remove us from we are on, if any.

Member Function Documentation

◆ addAfter() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addAfter	(	N &	node,
		bool	upgrade = false )

inlineprotectedinherited

Add ourself to a list after another node.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add ourself after. If node is not on a list, do nothing.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

References ListInNode< R, N, s, n >::m_next, ListInNode< R, N, s, n >::m_root, ListInNode< R, N, s, n >::writeLock(), and ListInNode< R, N, s, n >::writeUnlock().

Here is the call graph for this function:

◆ addAfter() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addAfter	(	N *	node,
		bool	upgrade = false )

inlineprotectedinherited

Add ourself to a list after another node.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add ourself after. If Node is NULL, or not on a list, do nothing.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addTo() [1/4]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addTo	(	R &	myRoot,
		bool	upgrade = false )

protectedinherited

Add ourself to a list at "natural" postion.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

Referenced by ListInNode< R, N, s, n >::ListInNode(), and ListInNode< R, N, s, n >::ListInNode().

Here is the caller graph for this function:

◆ addTo() [2/4]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addTo	(	R *	myRoot,
		bool	upgrade = false )

protectedinherited

Add ourself to a list at "natural" postion.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addTo() [3/4]

template<class R , class N , ContainerThreadSafety s, int n>

void SortListInNode< R, N, s, n >::addTo ( R & myRoot )

Add ourself to a list at "natural" position.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Parameters

myRoot List to add to.

◆ addTo() [4/4]

template<class R , class N , ContainerThreadSafety s, int n>

void SortListInNode< R, N, s, n >::addTo ( R * myRoot )

Add ourself to a list at "natural" position.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Parameters

myRoot List to add to.

◆ addToEnd() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addToEnd	(	R &	myRoot,
		bool	upgrade = false )

inlineprotectedinherited

Add ourselfs to the end of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToEnd() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addToEnd	(	R *	myRoot,
		bool	upgrade = false )

inlineprotectedinherited

Add ourselves to the End of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to. If NULL, just remove from all lists.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToFront() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addToFront	(	R &	myRoot,
		bool	upgrade = false )

inlineprotectedinherited

Add ourselfs to the front of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToFront() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addToFront	(	R *	myRoot,
		bool	upgrade = false )

inlineprotectedinherited

Add ourselfs to the front of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to. If NULL, just remove from all lists.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ check()

template<class R , class N , ContainerThreadSafety s, int n>

bool SortListInNode< R, N, s, n >::check ( ) const

overridevirtual

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Returns: True if check passes

Reimplemented from ListInNode< R, N, s, n >.

◆ next()

template<class R , class N , ContainerThreadSafety s, int n>

N * SortListInNode< R, N, s, n >::next ( ) const

inline

Return pointer to next node on list.

◆ prev()

template<class R , class N , ContainerThreadSafety s, int n>

N * SortListInNode< R, N, s, n >::prev ( ) const

inline

Return pointer to previous node on list.

◆ readLock()

template<class R , class N , ContainerThreadSafety s, int n>

unsigned SortListInNode< R, N, s, n >::readLock ( bool upgrade ) const

inline

References Container< s >::readLock().

Here is the call graph for this function:

◆ readUnlock()

template<class R , class N , ContainerThreadSafety s, int n>

void SortListInNode< R, N, s, n >::readUnlock ( unsigned save ) const

inline

References Container< s >::readUnlock().

Here is the call graph for this function:

◆ remove()

template<class R , class N , ContainerThreadSafety s, int n>

void SortListInNode< R, N, s, n >::remove ( )

inline

◆ root()

template<class R , class N , ContainerThreadSafety s, int n>

R * SortListInNode< R, N, s, n >::root ( ) const

inline

Return pointer to list we are on.

◆ setRoot() [1/2]

template<ContainerThreadSafety s>

void ContainerNode< s >::setRoot ( C * root )

inlineprotectedinherited

Set our Container.

Used to allow to Node to record what Container it is in. Used only if safety method need resources from the Container, like a Mutex

If an operation changes the root of a node, then it needs to save the original root to exit the critical section on that container that it entered before the operation.

Referenced by ContainerNode< s >::ContainerNode(), DListInNode< R, N, s, n >::setRoot(), ListInNode< R, N, s, n >::setRoot(), and TreeInNode< R, N, K, s, n >::setRoot().

Here is the caller graph for this function:

◆ setRoot() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::setRoot ( R * root )

inlineprotectedinherited

References ListInNode< R, N, s, n >::m_root, ListInNode< R, N, s, n >::root(), and ContainerNode< s >::setRoot().

Referenced by ListInRoot< R, N, s, n >::addFirst(), and ListInRoot< R, N, s, n >::addLast().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeLock()

template<class R , class N , ContainerThreadSafety s, int n>

unsigned SortListInNode< R, N, s, n >::writeLock ( bool upgrade ) const

inline

References Container< s >::writeLock().

Here is the call graph for this function:

◆ writeUnlock()

template<class R , class N , ContainerThreadSafety s, int n>

void SortListInNode< R, N, s, n >::writeUnlock ( unsigned save ) const

inline

References Container< s >::writeUnlock().

Here is the call graph for this function:

Friends And Related Symbol Documentation

◆ ListInNode< R, N, s, n >

template<class R , class N , ContainerThreadSafety s, int n>

friend class ListInNode< R, N, s, n >

friend

◆ ListInRoot< R, N, s, n >

template<class R , class N , ContainerThreadSafety s, int n>

friend class ListInRoot< R, N, s, n >

friend

◆ SortListInRoot< R, N, s, n >

template<class R , class N , ContainerThreadSafety s, int n>

friend class SortListInRoot< R, N, s, n >

friend

Member Data Documentation

◆ m_next

template<class R , class N , ContainerThreadSafety s, int n>

N* ListInNode< R, N, s, n >::m_next

privateinherited

Pointer to next Node in list.

Referenced by ListInNode< R, N, s, n >::addAfter(), ListInRoot< R, N, s, n >::addFirst(), ListInRoot< R, N, s, n >::addLast(), ListInNode< R, N, s, n >::next(), and ListInNode< R, N, s, n >::remove().

◆ m_root

template<class R , class N , ContainerThreadSafety s, int n>

R* ListInNode< R, N, s, n >::m_root

privateinherited

Pointer to list we are on.

Referenced by ListInNode< R, N, s, n >::addAfter(), ListInRoot< R, N, s, n >::addFirst(), ListInRoot< R, N, s, n >::addLast(), ListInRoot< R, N, s, n >::remove(), ListInNode< R, N, s, n >::root(), and ListInNode< R, N, s, n >::setRoot().

◆ R

template<class R , class N , ContainerThreadSafety s, int n>

friend ListInNode< R, N, s, n >::R

privateinherited

The documentation for this class was generated from the following files:

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ Base

◆ C

◆ Node

◆ Root

Constructor & Destructor Documentation

◆ SortListInNode() [1/2]

◆ SortListInNode() [2/2]

◆ ~SortListInNode()

Member Function Documentation

◆ addAfter() [1/2]

◆ addAfter() [2/2]

◆ addTo() [1/4]

◆ addTo() [2/4]

◆ addTo() [3/4]

◆ addTo() [4/4]

◆ addToEnd() [1/2]

◆ addToEnd() [2/2]

◆ addToFront() [1/2]

◆ addToFront() [2/2]

◆ check()

◆ next()

◆ prev()

◆ readLock()

◆ readUnlock()

◆ remove()

◆ root()

◆ setRoot() [1/2]

◆ setRoot() [2/2]

◆ writeLock()

◆ writeUnlock()

Friends And Related Symbol Documentation

◆ ListInNode< R, N, s, n >

◆ ListInRoot< R, N, s, n >

◆ SortListInRoot< R, N, s, n >

Member Data Documentation

◆ m_next

◆ m_root

◆ R
