Intrusive Singly Linked List, Node. More...

#include <ListIn.h>

Inheritance diagram for ListInNode< R, N, s, n >:

[legend]

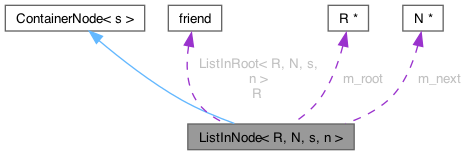

Collaboration diagram for ListInNode< R, N, s, n >:

[legend]

Protected Member Functions
	ListInNode (R &myRoot)
	Constructor.

	ListInNode (R *myRoot=nullptr)
	Constructor.

	~ListInNode ()
	Destructor.

void	addAfter (N &myNode, bool upgrade=false)
	Add ourself to a list after another node.

void	addAfter (N *myNode, bool upgrade=false)
	Add ourself to a list after another node.

void	addTo (R &myRoot, bool upgrade=false)
	Add ourself to a list at "natural" postion.

void	addTo (R *myRoot, bool upgrade=false)
	Add ourself to a list at "natural" postion.

void	addToEnd (R &myRoot, bool upgrade=false)
	Add ourselfs to the end of a list.

void	addToEnd (R *myRoot, bool upgrade=false)
	Add ourselves to the End of a list.

void	addToFront (R &myRoot, bool upgrade=false)
	Add ourselfs to the front of a list.

void	addToFront (R *myRoot, bool upgrade=false)
	Add ourselfs to the front of a list.

bool	check () const override

N *	next () const
	Return pointer to next Node on List.

unsigned	readLock (bool upgrade) const

void	readUnlock (unsigned save) const

void	remove ()
	Remove node from whatever list it is on, if it is on a list.

R *	root () const
	Return pointer to List we are on.

void	setRoot (C *root)
	Set our Container.

void	setRoot (R *root)

unsigned	writeLock (bool upgrade) const

void	writeUnlock (unsigned save) const

Private Types
typedef Container< s >	C
	The type of the Container that we are part of.

typedef ListInNode< R, N, s, n >	Node
	Type of ListInNode.

typedef ListInRoot< R, N, s, n >	Root
	Type of ListInRoot.

Private Attributes
friend	ListInRoot< R, N, s, n >

N *	m_next
	Pointer to next Node in list.

R *	m_root
	Pointer to list we are on.

friend	R

Detailed Description

template<class R, class N, ContainerThreadSafety s, int n>
class ListInNode< R, N, s, n >

Intrusive Singly Linked List, Node.

Template Parameters

R	The class that will be the owner of the List. Must derive from ListInRoot<R, N, n>
N	The class that will be the nodes of the List. Must derive from ListInNode<R, N, n>
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Invariant

if m_root == nullptr
- m_nest == nullptr
if m_next == nullptr
- m_root->m_last = this;
if m_next != nullptr
- m_next->m_root == m_root
- m_next != m_root->m_first

Last Criteria is closet expression to the fact that root.m_first points to a node that other node points to as its m_next

See also: ListInRoot

Member Typedef Documentation

◆ C

template<ContainerThreadSafety s>

Container<s> ContainerNode< s >::C

privateinherited

The type of the Container that we are part of.

◆ Node

template<class R , class N , ContainerThreadSafety s, int n>

ListInNode<R, N, s, n> ListInNode< R, N, s, n >::Node

private

Type of ListInNode.

◆ Root

template<class R , class N , ContainerThreadSafety s, int n>

ListInRoot<R, N, s, n> ListInNode< R, N, s, n >::Root

private

Type of ListInRoot.

Constructor & Destructor Documentation

◆ ListInNode() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

ListInNode< R, N, s, n >::ListInNode ( R & myRoot )

protected

Constructor.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot list we are to be added to.

References ListInNode< R, N, s, n >::addTo().

Here is the call graph for this function:

◆ ListInNode() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

ListInNode< R, N, s, n >::ListInNode ( R * myRoot = nullptr )

protected

Constructor.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot Pointer to list for node to be added to (if not NULL).

References ListInNode< R, N, s, n >::addTo().

Here is the call graph for this function:

◆ ~ListInNode()

template<class R , class N , ContainerThreadSafety s, int n>

ListInNode< R, N, s, n >::~ListInNode ( )

protected

Destructor.

Remove us from we are on, if any.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Member Function Documentation

◆ addAfter() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addAfter	(	N &	node,
		bool	upgrade = false )

inlineprotected

Add ourself to a list after another node.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add ourself after. If node is not on a list, do nothing.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

References ListInNode< R, N, s, n >::m_next, ListInNode< R, N, s, n >::m_root, ListInNode< R, N, s, n >::writeLock(), and ListInNode< R, N, s, n >::writeUnlock().

Here is the call graph for this function:

◆ addAfter() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addAfter	(	N *	node,
		bool	upgrade = false )

inlineprotected

Add ourself to a list after another node.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add ourself after. If Node is NULL, or not on a list, do nothing.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addTo() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addTo	(	R &	myRoot,
		bool	upgrade = false )

protected

Add ourself to a list at "natural" postion.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

Referenced by ListInNode< R, N, s, n >::ListInNode(), and ListInNode< R, N, s, n >::ListInNode().

Here is the caller graph for this function:

◆ addTo() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addTo	(	R *	myRoot,
		bool	upgrade = false )

protected

Add ourself to a list at "natural" postion.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToEnd() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addToEnd	(	R &	myRoot,
		bool	upgrade = false )

inlineprotected

Add ourselfs to the end of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToEnd() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addToEnd	(	R *	myRoot,
		bool	upgrade = false )

inlineprotected

Add ourselves to the End of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to. If NULL, just remove from all lists.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToFront() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addToFront	(	R &	myRoot,
		bool	upgrade = false )

inlineprotected

Add ourselfs to the front of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToFront() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::addToFront	(	R *	myRoot,
		bool	upgrade = false )

inlineprotected

Add ourselfs to the front of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to. If NULL, just remove from all lists.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ check()

template<class R , class N , ContainerThreadSafety s, int n>

bool ListInNode< R, N, s, n >::check ( ) const

overrideprotectedvirtual

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Returns: True if check passes

Implements ContainerNode< s >.

Reimplemented in SortListInNode< R, N, s, n >.

References ListInRoot< R, N, s, n >::last(), and ListInNode< R, N, s, n >::root().

Referenced by ListInRoot< R, N, s, n >::check().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ next()

template<class R , class N , ContainerThreadSafety s, int n>

N * ListInNode< R, N, s, n >::next ( ) const

inlineprotected

Return pointer to next Node on List.

References ListInNode< R, N, s, n >::m_next.

Referenced by ListInRoot< R, N, s, n >::check().

Here is the caller graph for this function:

◆ readLock()

template<class R , class N , ContainerThreadSafety s, int n>

unsigned ListInNode< R, N, s, n >::readLock ( bool upgrade ) const

inlineprotected

References ContainerNode< s >::readLock().

Here is the call graph for this function:

◆ readUnlock()

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::readUnlock ( unsigned save ) const

inlineprotected

References ContainerNode< s >::readUnlock().

Here is the call graph for this function:

◆ remove()

template<class R , class N , ContainerThreadSafety s, int n>

void ListInNode< R, N, s, n >::remove ( )

inlineprotected

Remove node from whatever list it is on, if it is on a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

References ListInRoot< R, N, s, n >::m_first, ListInRoot< R, N, s, n >::m_last, and ListInNode< R, N, s, n >::m_next.

Referenced by ListInRoot< R, N, s, n >::addFirst(), ListInRoot< R, N, s, n >::addLast(), and ListInRoot< R, N, s, n >::remove().

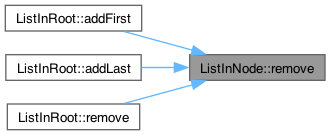

Here is the caller graph for this function:

◆ root()

template<class R , class N , ContainerThreadSafety s, int n>

R * ListInNode< R, N, s, n >::root ( ) const

inlineprotected

Return pointer to List we are on.

References ListInNode< R, N, s, n >::m_root.

Referenced by ListInNode< R, N, s, n >::check(), ListInRoot< R, N, s, n >::check(), and ListInNode< R, N, s, n >::setRoot().

Here is the caller graph for this function:

◆ setRoot() [1/2]

template<ContainerThreadSafety s>

void ContainerNode< s >::setRoot ( C * root )

inlineprotectedinherited

Set our Container.

Used to allow to Node to record what Container it is in. Used only if safety method need resources from the Container, like a Mutex

If an operation changes the root of a node, then it needs to save the original root to exit the critical section on that container that it entered before the operation.

Referenced by ContainerNode< s >::ContainerNode(), DListInNode< R, N, s, n >::setRoot(), ListInNode< R, N, s, n >::setRoot(), and TreeInNode< R, N, K, s, n >::setRoot().

Here is the caller graph for this function:
