ContainerNode< s > Class Template Reference

Base Container Node Class. More...

#include <Container.h>

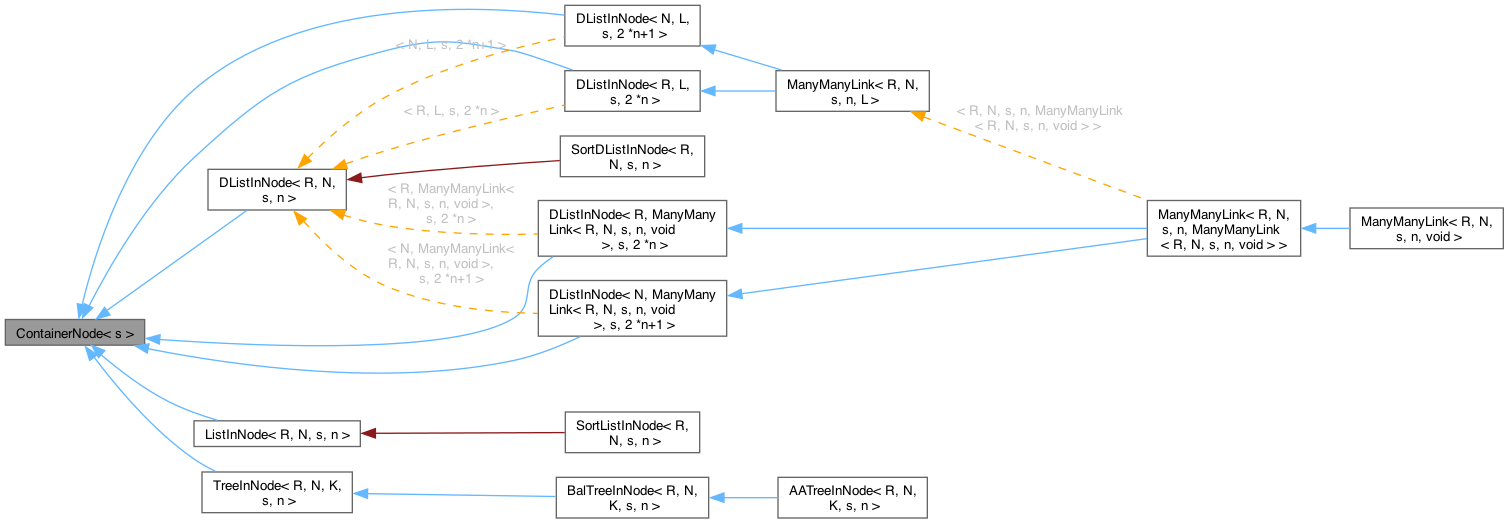

Inheritance diagram for ContainerNode< s >:

Protected Member Functions
	ContainerNode (C *root=nullptr)
	ContainerNode (ContainerNode const &)=delete
	~ContainerNode ()
virtual bool	check () const =0
void	operator= (ContainerNode const &)=delete
unsigned	readLock (bool upgradable) const
unsigned	readLock (bool upgradable) const
	Under ContainerNoSafety application handles all the needed restrictions.
void	readUnlock (unsigned code) const
void	readUnlock (unsigned save) const
	Under ContainerNoSafety application handles all the needed restrictions.
void	setRoot (C *root)
	Set our Container.
unsigned	writeLock (bool upgrade) const
unsigned	writeLock (bool upgrade) const
	Under ContainerNoSafety application handles all the needed restrictions.
void	writeUnlock (unsigned code) const
void	writeUnlock (unsigned save) const
	Under ContainerNoSafety application handles all the needed restrictions.

Private Types
typedef Container< s >	C
	The type of the Container that we are part of.

Detailed Description

template<ContainerThreadSafety s>
class ContainerNode< s >

Base Container Node Class.

Used to provide the Thread Safety Primitives for a Container Node

Template Parameters

s	The ContainerThreadSafety value to define the thread safety model of the Container Note, the Nodes must match the safety level of the container.

Member Typedef Documentation

C

template<ContainerThreadSafety s>

Container<s> ContainerNode< s >::C

private

The type of the Container that we are part of.

Constructor & Destructor Documentation

ContainerNode() [1/2]

template<ContainerThreadSafety s>

ContainerNode< s >::ContainerNode ( C * root = nullptr )

inlineprotected

References ContainerNode< s >::setRoot().

Here is the call graph for this function:

~ContainerNode()

template<ContainerThreadSafety s>

ContainerNode< s >::~ContainerNode ( )

inlineprotected

ContainerNode() [2/2]

template<ContainerThreadSafety s>

ContainerNode< s >::ContainerNode ( ContainerNode< s > const & )

protecteddelete

Member Function Documentation

check()

template<ContainerThreadSafety s>

virtual bool ContainerNode< s >::check ( ) const

protectedpure virtual

Implemented in AATreeInNode< R, N, K, s, n >, BalTreeInNode< R, N, K, s, n >, DListInNode< R, N, s, n >, DListInNode< N, L, s, 2 *n+1 >, DListInNode< N, ManyManyLink< R, N, s, n, void >, s, 2 *n+1 >, DListInNode< R, L, s, 2 *n >, DListInNode< R, ManyManyLink< R, N, s, n, void >, s, 2 *n >, ListInNode< R, N, s, n >, ManyManyLink< R, N, s, n, L >, ManyManyLink< R, N, s, n, ManyManyLink< R, N, s, n, void > >, SortDListInNode< R, N, s, n >, SortListInNode< R, N, s, n >, and TreeInNode< R, N, K, s, n >.

operator=()

template<ContainerThreadSafety s>

void ContainerNode< s >::operator= ( ContainerNode< s > const & )

protecteddelete

readLock() [1/2]

template<ContainerThreadSafety s>

unsigned ContainerNode< s >::readLock ( bool upgradable ) const

protected

Referenced by AATreeInNode< R, N, K, s, n >::readLock(), BalTreeInNode< R, N, K, s, n >::readLock(), DListInNode< R, N, s, n >::readLock(), ListInNode< R, N, s, n >::readLock(), and TreeInNode< R, N, K, s, n >::readLock().

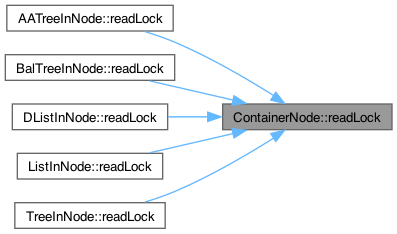

Here is the caller graph for this function:

readLock() [2/2]

unsigned ContainerNode< ContainerNoSafety >::readLock ( bool upgradable ) const

inlineprotected

Under ContainerNoSafety application handles all the needed restrictions.

readUnlock() [1/2]

template<ContainerThreadSafety s>

void ContainerNode< s >::readUnlock ( unsigned code ) const

protected

Referenced by AATreeInNode< R, N, K, s, n >::readUnlock(), BalTreeInNode< R, N, K, s, n >::readUnlock(), DListInNode< R, N, s, n >::readUnlock(), ListInNode< R, N, s, n >::readUnlock(), and TreeInNode< R, N, K, s, n >::readUnlock().

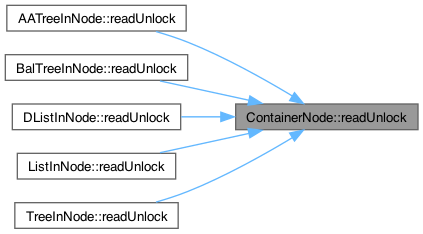

Here is the caller graph for this function:

readUnlock() [2/2]

void ContainerNode< ContainerNoSafety >::readUnlock ( unsigned save ) const

inlineprotected

Under ContainerNoSafety application handles all the needed restrictions.

setRoot()

template<ContainerThreadSafety s>

void ContainerNode< s >::setRoot ( C * root )

inlineprotected

Set our Container.

Used to allow to Node to record what Container it is in. Used only if safety method need resources from the Container, like a Mutex

If an operation changes the root of a node, then it needs to save the original root to exit the critical section on that container that it entered before the operation.

Referenced by ContainerNode< s >::ContainerNode(), DListInNode< R, N, s, n >::setRoot(), ListInNode< R, N, s, n >::setRoot(), and TreeInNode< R, N, K, s, n >::setRoot().

Here is the caller graph for this function:

writeLock() [1/2]

template<ContainerThreadSafety s>

unsigned ContainerNode< s >::writeLock ( bool upgrade ) const

protected

Referenced by AATreeInNode< R, N, K, s, n >::writeLock(), BalTreeInNode< R, N, K, s, n >::writeLock(), DListInNode< R, N, s, n >::writeLock(), ListInNode< R, N, s, n >::writeLock(), and TreeInNode< R, N, K, s, n >::writeLock().

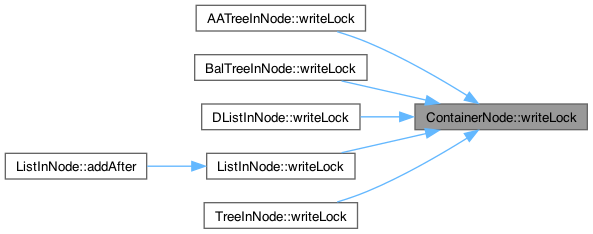

Here is the caller graph for this function:

writeLock() [2/2]

unsigned ContainerNode< ContainerNoSafety >::writeLock ( bool upgrade ) const

inlineprotected

Under ContainerNoSafety application handles all the needed restrictions.

writeUnlock() [1/2]

template<ContainerThreadSafety s>

void ContainerNode< s >::writeUnlock ( unsigned code ) const

protected

Referenced by AATreeInNode< R, N, K, s, n >::writeUnlock(), BalTreeInNode< R, N, K, s, n >::writeUnlock(), DListInNode< R, N, s, n >::writeUnlock(), ListInNode< R, N, s, n >::writeUnlock(), and TreeInNode< R, N, K, s, n >::writeUnlock().

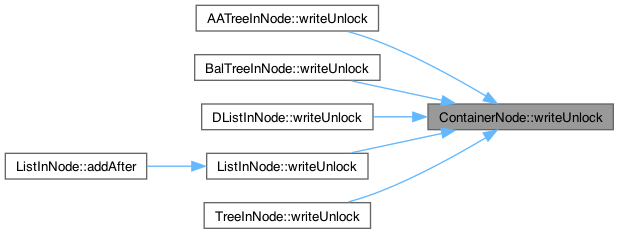

Here is the caller graph for this function:

writeUnlock() [2/2]

void ContainerNode< ContainerNoSafety >::writeUnlock ( unsigned save ) const

inlineprotected

Under ContainerNoSafety application handles all the needed restrictions.

---

The documentation for this class was generated from the following file:

• Container.h
