Intermediate Link for a many-many relationship. More...

#include <ManyMany.h>

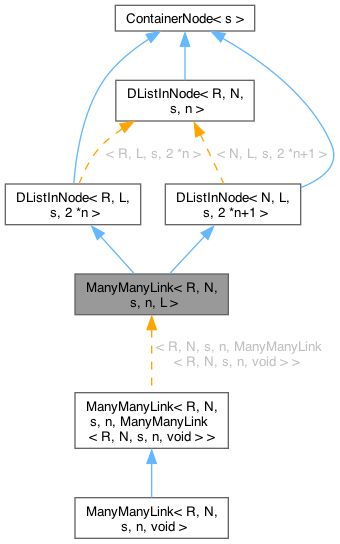

Inheritance diagram for ManyManyLink< R, N, s, n, L >:

[legend]

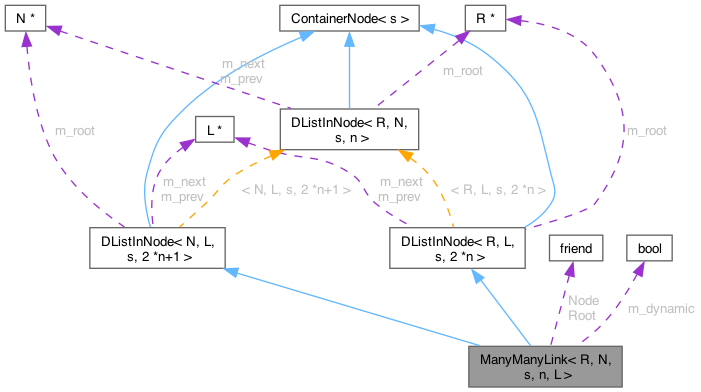

Collaboration diagram for ManyManyLink< R, N, s, n, L >:

[legend]

Public Member Functions
	ManyManyLink (R root=nullptr, N node=nullptr, L link1=nullptr, L link2=nullptr)

virtual	~ManyManyLink ()

void	add (R &root, N &node)

void	add (R root, N node, L link1=nullptr, L link2=nullptr)
	Link a Root to a Node with this Lisk.

void	addAfter (L &node, bool upgrade=false)
	Add ourself to a list after another node.

void	addAfter (L *node, bool upgrade=false)
	Add ourself to a list after another node.

void	addAfter (L &node, bool upgrade=false)
	Add ourself to a list after another node.

void	addAfter (L *node, bool upgrade=false)
	Add ourself to a list after another node.

void	addTo (N &root, bool upgrade=false)
	Add ourself to a list at "natural" postion.

void	addTo (N *root, bool upgrade=false)
	Add ourself to a list at "natural" postion.

void	addTo (R &root, bool upgrade=false)
	Add ourself to a list at "natural" postion.

void	addTo (R *root, bool upgrade=false)
	Add ourself to a list at "natural" postion.

void	addToEnd (N &root, bool upgrade=false)
	Add ourselfs to the end of a list.

void	addToEnd (N *root, bool upgrade=false)
	Add ourselfs to the End of a list.

void	addToEnd (R &root, bool upgrade=false)
	Add ourselfs to the end of a list.

void	addToEnd (R *root, bool upgrade=false)
	Add ourselfs to the End of a list.

void	addToFront (N &root, bool upgrade=false)
	Add ourselves to the front of a list.

void	addToFront (N *root, bool upgrade=false)
	Add ourselfs to the front of a list.

void	addToFront (R &root, bool upgrade=false)
	Add ourselves to the front of a list.

void	addToFront (R *root, bool upgrade=false)
	Add ourselfs to the front of a list.

bool	check () const override
	Check a DListInNode.

L *	next () const
	Return pointer to next node on list.

L *	next () const
	Return pointer to next node on list.

L *	nextNode () const

L *	nextRoot () const

N *	node () const

L *	prev () const
	Return pointer to previous node on list.

L *	prev () const
	Return pointer to previous node on list.

L *	prevNode () const

L *	prevRoot () const

unsigned	readLock (bool upgrade) const

unsigned	readLock (bool upgrade) const

void	readUnlock (unsigned save) const

void	readUnlock (unsigned save) const

void	remove ()

R *	root () const

void	setRoot (N *root)

void	setRoot (R *root)

unsigned	writeLock (bool upgrade) const

unsigned	writeLock (bool upgrade) const

void	writeUnlock (unsigned save) const

void	writeUnlock (unsigned save) const

Protected Member Functions
void	setRoot (C *root)
	Set our Container.

void	setRoot (C *root)
	Set our Container.

Private Types
typedef class DListInNode< N, L, s, 2 *n+1 >	BaseNode

typedef class DListInNode< R, L, s, 2 *n >	BaseRoot

typedef Container< s >	C
	The type of the Container that we are part of.

typedef class ManyManyLink< R, N, s, n, L >	Link

typedef class ManyManyNode< R, N, s, n, L >	Node

typedef class ManyManyRoot< R, N, s, n, L >	Root

typedef class DListInRoot< N, L, s, 2 *n+1 >	RootNode

typedef class DListInRoot< R, L, s, 2 *n >	RootRoot

Static Private Member Functions
static L &	getLink (L *link)
	Convert a possible link pointer into an actual link object.

Private Attributes
bool	m_dynamic = false

L *	m_next
	Pointer to net node on list.

L *	m_prev
	Pointer to previous node on list.

R *	m_root
	Pointer to list we are on.

friend	Node

friend	Root

Detailed Description

template<class R, class N, ContainerThreadSafety s, int n, class L>
class ManyManyLink< R, N, s, n, L >

Intermediate Link for a many-many relationship.

Allowed to be pointing to a user class to allow properties on the relationship.

Invariant

From DListInNode:

if root() == nullptr
- node() == nullptr // we point to both or neither
- nextRoot() == nullptr
- prevRoot() == nullptr
- nextNode() == nullptr
- prevNode() == nullptr
if prevRoot() == nullptr
- root()->first() = this;
if prevRoot() !- nullptr
- prevRoot()->root() == root()
- prevRoot()->nextRoot() == this
if nextRoot() == nullptr
- root()->last() = this
if nextRoot() != nullptr
- nextRoot()->root() == link.root()
- nextRoot()->prevRoot() == this
if link.prevNode() == nullptr
- node()->first() = this
if prevNode() !- nullptr
- prevNode()->node() == link.node()
- prevNode()->nextNode() == this
if nextNode() == nullptr
- node()->last() = this
if nextNode() != nullptr
- nextNode()->node() == node()
- nextNode()->prevNode() == this

Member Typedef Documentation

◆ BaseNode

template<class R , class N , ContainerThreadSafety s, int n, class L >

class DListInNode< N, L, s, 2 *n+1 > ManyManyLink< R, N, s, n, L >::BaseNode

private

◆ BaseRoot

template<class R , class N , ContainerThreadSafety s, int n, class L >

class DListInNode< R, L, s, 2 *n > ManyManyLink< R, N, s, n, L >::BaseRoot

private

◆ C

template<ContainerThreadSafety s>

Container<s> ContainerNode< s >::C

privateinherited

The type of the Container that we are part of.

◆ Link

template<class R , class N , ContainerThreadSafety s, int n, class L >

class ManyManyLink< R, N, s, n, L > ManyManyLink< R, N, s, n, L >::Link

private

◆ Node

template<class R , class N , ContainerThreadSafety s, int n, class L >

class ManyManyNode< R, N, s, n, L > ManyManyLink< R, N, s, n, L >::Node

private

◆ Root

template<class R , class N , ContainerThreadSafety s, int n, class L >

class ManyManyRoot< R, N, s, n, L > ManyManyLink< R, N, s, n, L >::Root

private

◆ RootNode

template<class R , class N , ContainerThreadSafety s, int n, class L >

class DListInRoot< N, L, s, 2 *n+1 > ManyManyLink< R, N, s, n, L >::RootNode

private

◆ RootRoot

template<class R , class N , ContainerThreadSafety s, int n, class L >

class DListInRoot< R, L, s, 2 *n > ManyManyLink< R, N, s, n, L >::RootRoot

private

Constructor & Destructor Documentation

◆ ManyManyLink()

template<class R , class N , ContainerThreadSafety s, int n, class L >

ManyManyLink< R, N, s, n, L >::ManyManyLink	(	R *	root = nullptr,
		N *	node = nullptr,
		L *	link1 = nullptr,
		L *	link2 = nullptr )

◆ ~ManyManyLink()

template<class R , class N , ContainerThreadSafety s, int n, class L >

ManyManyLink< R, N, s, n, L >::~ManyManyLink ( )

virtual

Member Function Documentation

◆ add() [1/2]

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyLink< R, N, s, n, L >::add	(	R &	root,
		N &	node )

◆ add() [2/2]

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyLink< R, N, s, n, L >::add	(	R *	root,
		N *	node,
		L *	link1 = nullptr,
		L *	link2 = nullptr )

Link a Root to a Node with this Lisk.

Template Parameters

R
N
L
s
n

Parameters

root
node
link1
link2

If link1 or link2 point to either the Root or Node we are to connect to, then we will link ourselves on that side just after that link. Otherwise we link at the front of the lists.

◆ addAfter() [1/4]

void DListInNode< N, L, s, n >::addAfter	(	L &	node,
		bool	upgrade = false )

inlineinherited

Add ourself to a list after another node.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add ourself after. If that node is not on a list, do nothing.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addAfter() [2/4]

void DListInNode< N, L, s, n >::addAfter	(	L *	node,
		bool	upgrade = false )

inlineinherited

Add ourself to a list after another node.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add ourself after. If Node is NULL, or not on a list, do nothing.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addAfter() [3/4]

void DListInNode< R, L, s, n >::addAfter	(	L &	node,
		bool	upgrade = false )

inlineinherited

Add ourself to a list after another node.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add ourself after. If that node is not on a list, do nothing.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addAfter() [4/4]

void DListInNode< R, L, s, n >::addAfter	(	L *	node,
		bool	upgrade = false )

inlineinherited

Add ourself to a list after another node.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add ourself after. If Node is NULL, or not on a list, do nothing.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addTo() [1/4]

void DListInNode< N, L, s, n >::addTo	(	N &	myRoot,
		bool	upgrade = false )

inherited

Add ourself to a list at "natural" postion.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addTo() [2/4]

void DListInNode< N, L, s, n >::addTo	(	N *	myRoot,
		bool	upgrade = false )

inherited

Add ourself to a list at "natural" postion.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addTo() [3/4]

void DListInNode< R, L, s, n >::addTo	(	R &	myRoot,
		bool	upgrade = false )

inherited

Add ourself to a list at "natural" postion.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addTo() [4/4]

void DListInNode< R, L, s, n >::addTo	(	R *	myRoot,
		bool	upgrade = false )

inherited

Add ourself to a list at "natural" postion.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToEnd() [1/4]

void DListInNode< N, L, s, n >::addToEnd	(	N &	myRoot,
		bool	upgrade = false )

inlineinherited

Add ourselfs to the end of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToEnd() [2/4]

void DListInNode< N, L, s, n >::addToEnd	(	N *	myRoot,
		bool	upgrade = false )

inlineinherited

Add ourselfs to the End of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

If NULL, just remove from all lists.

◆ addToEnd() [3/4]

void DListInNode< R, L, s, n >::addToEnd	(	R &	myRoot,
		bool	upgrade = false )

inlineinherited

Add ourselfs to the end of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToEnd() [4/4]

void DListInNode< R, L, s, n >::addToEnd	(	R *	myRoot,
		bool	upgrade = false )

inlineinherited

Add ourselfs to the End of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

If NULL, just remove from all lists.

◆ addToFront() [1/4]

void DListInNode< N, L, s, n >::addToFront	(	N &	myRoot,
		bool	upgrade = false )

inlineinherited

Add ourselves to the front of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToFront() [2/4]

void DListInNode< N, L, s, n >::addToFront	(	N *	myRoot,
		bool	upgrade = false )

inlineinherited

Add ourselfs to the front of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to. If NULL, just remove from all lists.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToFront() [3/4]

void DListInNode< R, L, s, n >::addToFront	(	R &	myRoot,
		bool	upgrade = false )

inlineinherited

Add ourselves to the front of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToFront() [4/4]

void DListInNode< R, L, s, n >::addToFront	(	R *	myRoot,
		bool	upgrade = false )

inlineinherited

Add ourselfs to the front of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to. If NULL, just remove from all lists.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ check()

template<class R , class N , ContainerThreadSafety s, int n, class L >

bool ManyManyLink< R, N, s, n, L >::check ( ) const

overridevirtual

Check a DListInNode.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Returns: true if check passes

Reimplemented from DListInNode< R, L, s, 2 *n >.

◆ getLink()

template<class R , class N , ContainerThreadSafety s, int n, class L >

L & ManyManyLink< R, N, s, n, L >::getLink ( L * link )

staticprivate

Convert a possible link pointer into an actual link object.

If we are given a non-null pointer, us it, otherwise dynamically create the needed ManyManyLink object, and mark it to be deleted when removed.

◆ next() [1/2]

L * DListInNode< N, L, s, n >::next ( ) const

inlineinherited

Return pointer to next node on list.

◆ next() [2/2]

L * DListInNode< R, L, s, n >::next ( ) const

inlineinherited

Return pointer to next node on list.

◆ nextNode()

template<class R , class N , ContainerThreadSafety s, int n, class L >

L * ManyManyLink< R, N, s, n, L >::nextNode ( ) const

inline

◆ nextRoot()

template<class R , class N , ContainerThreadSafety s, int n, class L >

L * ManyManyLink< R, N, s, n, L >::nextRoot ( ) const

inline

◆ node()

template<class R , class N , ContainerThreadSafety s, int n, class L >

N * ManyManyLink< R, N, s, n, L >::node ( ) const

inline

◆ prev() [1/2]

L * DListInNode< N, L, s, n >::prev ( ) const

inlineinherited

Return pointer to previous node on list.

◆ prev() [2/2]

L * DListInNode< R, L, s, n >::prev ( ) const

inlineinherited

Return pointer to previous node on list.

◆ prevNode()

template<class R , class N , ContainerThreadSafety s, int n, class L >

L * ManyManyLink< R, N, s, n, L >::prevNode ( ) const

inline

◆ prevRoot()

template<class R , class N , ContainerThreadSafety s, int n, class L >

L * ManyManyLink< R, N, s, n, L >::prevRoot ( ) const

inline

◆ readLock() [1/2]

unsigned DListInNode< N, L, s, n >::readLock ( bool upgrade ) const

inlineinherited

◆ readLock() [2/2]

unsigned DListInNode< R, L, s, n >::readLock ( bool upgrade ) const

inlineinherited

◆ readUnlock() [1/2]

void DListInNode< N, L, s, n >::readUnlock ( unsigned save ) const

inlineinherited

◆ readUnlock() [2/2]

void DListInNode< R, L, s, n >::readUnlock ( unsigned save ) const

inlineinherited

◆ remove()

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyLink< R, N, s, n, L >::remove ( )

◆ root()

template<class R , class N , ContainerThreadSafety s, int n, class L >

R * ManyManyLink< R, N, s, n, L >::root ( ) const

inline

◆ setRoot() [1/4]

template<ContainerThreadSafety s>

void ContainerNode< s >::setRoot ( C * root )

inlineprotectedinherited

Set our Container.

Used to allow to Node to record what Container it is in. Used only if safety method need resources from the Container, like a Mutex

If an operation changes the root of a node, then it needs to save the original root to exit the critical section on that container that it entered before the operation.

Referenced by ContainerNode< s >::ContainerNode(), DListInNode< R, N, s, n >::setRoot(), ListInNode< R, N, s, n >::setRoot(), and TreeInNode< R, N, K, s, n >::setRoot().

Here is the caller graph for this function:

◆ setRoot() [2/4]

template<ContainerThreadSafety s>

void ContainerNode< s >::setRoot ( C * root )

inlineprotectedinherited

Set our Container.

Used to allow to Node to record what Container it is in. Used only if safety method need resources from the Container, like a Mutex

If an operation changes the root of a node, then it needs to save the original root to exit the critical section on that container that it entered before the operation.

Referenced by ContainerNode< s >::ContainerNode(), DListInNode< R, N, s, n >::setRoot(), ListInNode< R, N, s, n >::setRoot(), and TreeInNode< R, N, K, s, n >::setRoot().

Here is the caller graph for this function:

◆ setRoot() [3/4]

void DListInNode< N, L, s, n >::setRoot ( N * root )

inlineinherited

◆ setRoot() [4/4]

void DListInNode< R, L, s, n >::setRoot ( R * root )

inlineinherited

◆ writeLock() [1/2]

unsigned DListInNode< N, L, s, n >::writeLock ( bool upgrade ) const

inlineinherited

◆ writeLock() [2/2]

unsigned DListInNode< R, L, s, n >::writeLock ( bool upgrade ) const

inlineinherited

◆ writeUnlock() [1/2]

void DListInNode< N, L, s, n >::writeUnlock ( unsigned save ) const

inlineinherited

◆ writeUnlock() [2/2]

void DListInNode< R, L, s, n >::writeUnlock ( unsigned save ) const

inlineinherited

Member Data Documentation

◆ m_dynamic

template<class R , class N , ContainerThreadSafety s, int n, class L >

bool ManyManyLink< R, N, s, n, L >::m_dynamic = false

private

◆ m_next

L* DListInNode< R, L, s, n >::m_next

privateinherited

Pointer to net node on list.

◆ m_prev

L* DListInNode< R, L, s, n >::m_prev

privateinherited

Pointer to previous node on list.

◆ m_root

R* DListInNode< R, L, s, n >::m_root

privateinherited

Pointer to list we are on.

◆ Node

template<class R , class N , ContainerThreadSafety s, int n, class L >

friend ManyManyLink< R, N, s, n, L >::Node

private

◆ Root

template<class R , class N , ContainerThreadSafety s, int n, class L >

friend ManyManyLink< R, N, s, n, L >::Root

private

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Types

Static Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ BaseNode

◆ BaseRoot

◆ C

◆ Link

◆ Node

◆ Root

◆ RootNode

◆ RootRoot

Constructor & Destructor Documentation

◆ ManyManyLink()

◆ ~ManyManyLink()

Member Function Documentation

◆ add() [1/2]

◆ add() [2/2]

◆ addAfter() [1/4]

◆ addAfter() [2/4]

◆ addAfter() [3/4]

◆ addAfter() [4/4]

◆ addTo() [1/4]

◆ addTo() [2/4]

◆ addTo() [3/4]

◆ addTo() [4/4]

◆ addToEnd() [1/4]

◆ addToEnd() [2/4]

◆ addToEnd() [3/4]

◆ addToEnd() [4/4]

◆ addToFront() [1/4]

◆ addToFront() [2/4]

◆ addToFront() [3/4]

◆ addToFront() [4/4]

◆ check()

◆ getLink()

◆ next() [1/2]

◆ next() [2/2]

◆ nextNode()

◆ nextRoot()

◆ node()

◆ prev() [1/2]

◆ prev() [2/2]

◆ prevNode()

◆ prevRoot()

◆ readLock() [1/2]

◆ readLock() [2/2]

◆ readUnlock() [1/2]

◆ readUnlock() [2/2]

◆ remove()

◆ root()

◆ setRoot() [1/4]

◆ setRoot() [2/4]

◆ setRoot() [3/4]

◆ setRoot() [4/4]

◆ writeLock() [1/2]

◆ writeLock() [2/2]

◆ writeUnlock() [1/2]

◆ writeUnlock() [2/2]

Member Data Documentation

◆ m_dynamic

◆ m_next

◆ m_prev

◆ m_root

◆ Node

◆ Root
