Intrusive Doubly Linked List, Node. More...

#include <SortDListIn.h>

Inheritance diagram for SortDListInNode< R, N, s, n >:

[legend]

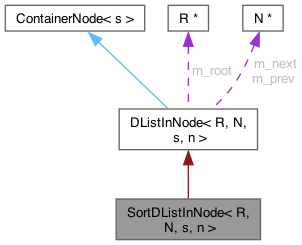

Collaboration diagram for SortDListInNode< R, N, s, n >:

[legend]

Public Member Functions
	SortDListInNode (R &)
	Constructor.

	SortDListInNode (R *root=nullptr)
	Constructor.

	~SortDListInNode ()
	Destructor.

void	addTo (R &root)
	Add ourself to a list at "natural" position.

void	addTo (R *root)
	Add ourself to a list at "natural" position.

bool	check () const override
	Check a DListInNode.

N *	next () const
	Return pointer to next node on list.

N *	prev () const
	Return pointer to previous node on list.

unsigned	readLock (bool upgrade) const

void	readUnlock (unsigned save) const

void	remove ()

R *	root () const
	Return pointer to list we are on.

unsigned	writeLock (bool upgrade) const

void	writeUnlock (unsigned save) const

Private Types
typedef class DListInNode< R, N, s, n >	Base

typedef Container< s >	C
	The type of the Container that we are part of.

typedef class SortDListInNode< R, N, s, n >	Node
	Type of DListIInNode.

typedef class SortDListInRoot< R, N, s, n >	Root
	Type of DListInRoot.

Private Member Functions
void	addAfter (N &node, bool upgrade=false)
	Add ourself to a list after another node.

void	addAfter (N *node, bool upgrade=false)
	Add ourself to a list after another node.

void	addTo (R &root, bool upgrade=false)
	Add ourself to a list at "natural" postion.

void	addTo (R *root, bool upgrade=false)
	Add ourself to a list at "natural" postion.

void	addToEnd (R &root, bool upgrade=false)
	Add ourselfs to the end of a list.

void	addToEnd (R *root, bool upgrade=false)
	Add ourselfs to the End of a list.

void	addToFront (R &root, bool upgrade=false)
	Add ourselves to the front of a list.

void	addToFront (R *root, bool upgrade=false)
	Add ourselfs to the front of a list.

void	setRoot (C *root)
	Set our Container.

void	setRoot (R *root)

Private Attributes
N *	m_next
	Pointer to net node on list.

N *	m_prev
	Pointer to previous node on list.

R *	m_root
	Pointer to list we are on.

Friends
class	DListInNode< R, N, s, n >

class	DListInRoot< R, N, s, n >

class	SortDListInRoot< R, N, s, n >

Detailed Description

template<class R, class N, ContainerThreadSafety s, int n>
class SortDListInNode< R, N, s, n >

Intrusive Doubly Linked List, Node.

Template Parameters

L	The class that will be the owner of the List. Must derive from DListInRoot<R, N, n>
N	The class that will be the nodes of the List. Must derive from DListInNode<R, N, n>
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Warning: The Sorted Lists are new additions and not fully tested

Invariant

New

if m_prev != nullptr
- m_root->compare(*this, *m_prev) <= 0
- m_root->compare(*m_prev, *this) >a= 0
if m_next != nullptr
- m_root->compare(*this, *m_next) >= 0
- m_root->compare(*m_next, *this) <= 0

From DListIn.h DListInNode

if m_root == nullptr
- m_nest == nullptr
- m_prev == nullptr
if m_prev == nullptr
- m_root->m_first = this
if m_prev !- nullptr
- m_prev->m_root == m_root
- m_orev->m_next == this
if m_next == nullptr
- m_root->m_last = this
if m_next != nullptr
- m_next->m_root == m_root
- m_next->m_prev == this

See also: SortDListIn

Member Typedef Documentation

◆ Base

template<class R , class N , ContainerThreadSafety s, int n>

class DListInNode< R, N, s, n > SortDListInNode< R, N, s, n >::Base

private

◆ C

template<ContainerThreadSafety s>

Container<s> ContainerNode< s >::C

privateinherited

The type of the Container that we are part of.

◆ Node

template<class R , class N , ContainerThreadSafety s, int n>

class SortDListInNode< R, N, s, n > SortDListInNode< R, N, s, n >::Node

private

Type of DListIInNode.

◆ Root

template<class R , class N , ContainerThreadSafety s, int n>

class SortDListInRoot< R, N, s, n > SortDListInNode< R, N, s, n >::Root

private

Type of DListInRoot.

Constructor & Destructor Documentation

◆ SortDListInNode() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

SortDListInNode< R, N, s, n >::SortDListInNode ( R * myRoot = nullptr )

Constructor.

Parameters

myRoot Pointer to list for node to be added to (if not NULL).

◆ SortDListInNode() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

SortDListInNode< R, N, s, n >::SortDListInNode ( R & myRoot )

Constructor.

Parameters

myRoot list we are to be added to.

◆ ~SortDListInNode()

template<class R , class N , ContainerThreadSafety s, int n>

SortDListInNode< R, N, s, n >::~SortDListInNode ( )

Destructor.

Remove us from we are on, if any.

Member Function Documentation

◆ addAfter() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addAfter	(	N &	node,
		bool	upgrade = false )

inlineinherited

Add ourself to a list after another node.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add ourself after. If that node is not on a list, do nothing.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addAfter() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addAfter	(	N *	node,
		bool	upgrade = false )

inlineinherited

Add ourself to a list after another node.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add ourself after. If Node is NULL, or not on a list, do nothing.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addTo() [1/4]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addTo	(	R &	myRoot,
		bool	upgrade = false )

inherited

Add ourself to a list at "natural" postion.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

Referenced by DListInNode< R, N, s, n >::DListInNode(), and DListInNode< R, N, s, n >::DListInNode().

Here is the caller graph for this function:

◆ addTo() [2/4]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addTo	(	R *	myRoot,
		bool	upgrade = false )

inherited

Add ourself to a list at "natural" postion.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addTo() [3/4]

template<class R , class N , ContainerThreadSafety s, int n>

void SortDListInNode< R, N, s, n >::addTo ( R & myRoot )

Add ourself to a list at "natural" position.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Parameters

myRoot List to add to.

◆ addTo() [4/4]

template<class R , class N , ContainerThreadSafety s, int n>

void SortDListInNode< R, N, s, n >::addTo ( R * myRoot )

Add ourself to a list at "natural" position.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Parameters

myRoot List to add to.

◆ addToEnd() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addToEnd	(	R &	myRoot,
		bool	upgrade = false )

inlineinherited

Add ourselfs to the end of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToEnd() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addToEnd	(	R *	myRoot,
		bool	upgrade = false )

inlineinherited

Add ourselfs to the End of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

If NULL, just remove from all lists.

◆ addToFront() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addToFront	(	R &	myRoot,
		bool	upgrade = false )

inlineinherited

Add ourselves to the front of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToFront() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addToFront	(	R *	myRoot,
		bool	upgrade = false )

inlineinherited

Add ourselfs to the front of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to. If NULL, just remove from all lists.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ check()

template<class R , class N , ContainerThreadSafety s, int n>

bool SortDListInNode< R, N, s, n >::check ( ) const

overridevirtual

Check a DListInNode.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Returns: true if check passes

Reimplemented from DListInNode< R, N, s, n >.

◆ next()

template<class R , class N , ContainerThreadSafety s, int n>

N * SortDListInNode< R, N, s, n >::next ( ) const

inline

Return pointer to next node on list.

◆ prev()

template<class R , class N , ContainerThreadSafety s, int n>

N * SortDListInNode< R, N, s, n >::prev ( ) const

inline

Return pointer to previous node on list.

◆ readLock()

template<class R , class N , ContainerThreadSafety s, int n>

unsigned SortDListInNode< R, N, s, n >::readLock ( bool upgrade ) const

inline

References Container< s >::readLock().

Here is the call graph for this function:

◆ readUnlock()

template<class R , class N , ContainerThreadSafety s, int n>

void SortDListInNode< R, N, s, n >::readUnlock ( unsigned save ) const

inline

References Container< s >::readUnlock().

Here is the call graph for this function:

◆ remove()

template<class R , class N , ContainerThreadSafety s, int n>

void SortDListInNode< R, N, s, n >::remove ( )

inline

◆ root()

template<class R , class N , ContainerThreadSafety s, int n>

R * SortDListInNode< R, N, s, n >::root ( ) const

inline

Return pointer to list we are on.

◆ setRoot() [1/2]

template<ContainerThreadSafety s>

void ContainerNode< s >::setRoot ( C * root )

inlineprotectedinherited

Set our Container.

Used to allow to Node to record what Container it is in. Used only if safety method need resources from the Container, like a Mutex

If an operation changes the root of a node, then it needs to save the original root to exit the critical section on that container that it entered before the operation.

Referenced by ContainerNode< s >::ContainerNode(), DListInNode< R, N, s, n >::setRoot(), ListInNode< R, N, s, n >::setRoot(), and TreeInNode< R, N, K, s, n >::setRoot().

Here is the caller graph for this function:

◆ setRoot() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::setRoot ( R * root )

inlineinherited

References DListInNode< R, N, s, n >::m_root, DListInNode< R, N, s, n >::root(), and ContainerNode< s >::setRoot().

Here is the call graph for this function:

◆ writeLock()

template<class R , class N , ContainerThreadSafety s, int n>

unsigned SortDListInNode< R, N, s, n >::writeLock ( bool upgrade ) const

inline

References Container< s >::writeLock().

Here is the call graph for this function:

◆ writeUnlock()

template<class R , class N , ContainerThreadSafety s, int n>

void SortDListInNode< R, N, s, n >::writeUnlock ( unsigned save ) const

inline

References Container< s >::writeUnlock().

Here is the call graph for this function:

Friends And Related Symbol Documentation

◆ DListInNode< R, N, s, n >

template<class R , class N , ContainerThreadSafety s, int n>

friend class DListInNode< R, N, s, n >

friend

◆ DListInRoot< R, N, s, n >

template<class R , class N , ContainerThreadSafety s, int n>

friend class DListInRoot< R, N, s, n >

friend

◆ SortDListInRoot< R, N, s, n >

template<class R , class N , ContainerThreadSafety s, int n>

friend class SortDListInRoot< R, N, s, n >

friend

Member Data Documentation

◆ m_next

template<class R , class N , ContainerThreadSafety s, int n>

N* DListInNode< R, N, s, n >::m_next

privateinherited

Pointer to net node on list.

Referenced by DListInNode< R, N, s, n >::next().

◆ m_prev

template<class R , class N , ContainerThreadSafety s, int n>

N* DListInNode< R, N, s, n >::m_prev

privateinherited

Pointer to previous node on list.

Referenced by DListInNode< R, N, s, n >::prev().

◆ m_root

template<class R , class N , ContainerThreadSafety s, int n>

R* DListInNode< R, N, s, n >::m_root

privateinherited

Pointer to list we are on.

Referenced by DListInNode< R, N, s, n >::root(), and DListInNode< R, N, s, n >::setRoot().

The documentation for this class was generated from the following files:

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ Base

◆ C

◆ Node

◆ Root

Constructor & Destructor Documentation

◆ SortDListInNode() [1/2]

◆ SortDListInNode() [2/2]

◆ ~SortDListInNode()

Member Function Documentation

◆ addAfter() [1/2]

◆ addAfter() [2/2]

◆ addTo() [1/4]

◆ addTo() [2/4]

◆ addTo() [3/4]

◆ addTo() [4/4]

◆ addToEnd() [1/2]

◆ addToEnd() [2/2]

◆ addToFront() [1/2]

◆ addToFront() [2/2]

◆ check()

◆ next()

◆ prev()

◆ readLock()

◆ readUnlock()

◆ remove()

◆ root()

◆ setRoot() [1/2]

◆ setRoot() [2/2]

◆ writeLock()

◆ writeUnlock()

Friends And Related Symbol Documentation

◆ DListInNode< R, N, s, n >

◆ DListInRoot< R, N, s, n >

◆ SortDListInRoot< R, N, s, n >

Member Data Documentation

◆ m_next

◆ m_prev

◆ m_root
