Intrusive Doubly Linked List, Node. More...

#include <DListIn.h>

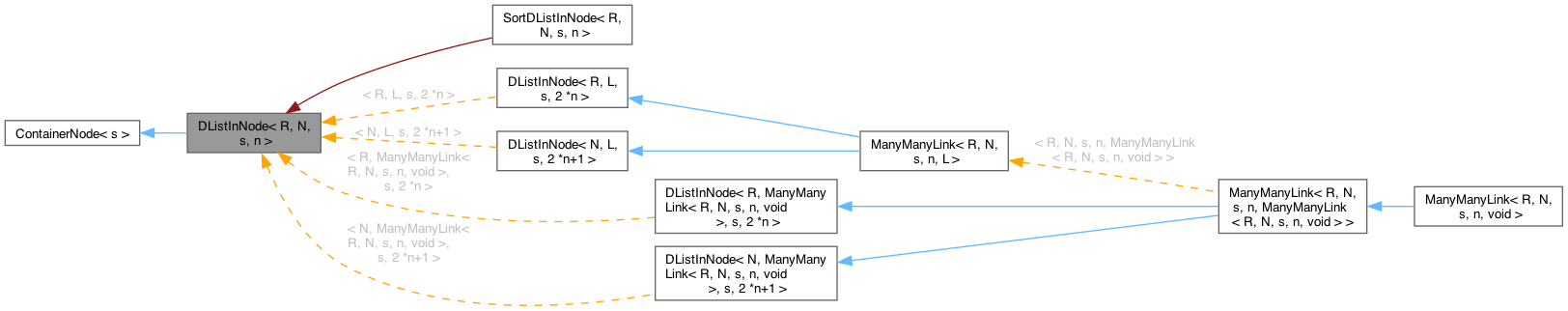

Inheritance diagram for DListInNode< R, N, s, n >:

[legend]

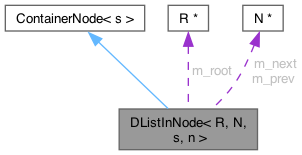

Collaboration diagram for DListInNode< R, N, s, n >:

[legend]

Public Member Functions
	DListInNode (R &)
	Constructor.

	DListInNode (R *root=nullptr)
	Constructor.

	~DListInNode ()
	Destructor.

void	addAfter (N &node, bool upgrade=false)
	Add ourself to a list after another node.

void	addAfter (N *node, bool upgrade=false)
	Add ourself to a list after another node.

void	addTo (R &root, bool upgrade=false)
	Add ourself to a list at "natural" postion.

void	addTo (R *root, bool upgrade=false)
	Add ourself to a list at "natural" postion.

void	addToEnd (R &root, bool upgrade=false)
	Add ourselfs to the end of a list.

void	addToEnd (R *root, bool upgrade=false)
	Add ourselfs to the End of a list.

void	addToFront (R &root, bool upgrade=false)
	Add ourselves to the front of a list.

void	addToFront (R *root, bool upgrade=false)
	Add ourselfs to the front of a list.

bool	check () const override
	Check a DListInNode.

N *	next () const
	Return pointer to next node on list.

N *	prev () const
	Return pointer to previous node on list.

unsigned	readLock (bool upgrade) const

void	readUnlock (unsigned save) const

void	remove ()
	Remove node from whatever list it is on, if it is on a list.

R *	root () const
	Return pointer to list we are on.

void	setRoot (R *root)

unsigned	writeLock (bool upgrade) const

void	writeUnlock (unsigned save) const

Protected Member Functions
void	setRoot (C *root)
	Set our Container.

Private Types
typedef Container< s >	C
	The type of the Container that we are part of.

typedef class DListInNode< R, N, s, n >	Node
	Type of DListIInNode.

typedef class DListInRoot< R, N, s, n >	Root
	Type of DListInRoot.

Private Attributes
N *	m_next
	Pointer to net node on list.

N *	m_prev
	Pointer to previous node on list.

R *	m_root
	Pointer to list we are on.

Friends
class	DListInRoot< R, N, s, n >

Detailed Description

template<class R, class N, ContainerThreadSafety s, int n>
class DListInNode< R, N, s, n >

Intrusive Doubly Linked List, Node.

Template Parameters

R	The class that will be the owner of the List. Must derive from DListInRoot<R, N, n>
N	The class that will be the nodes of the List. Must derive from DListInNode<R, N, n>
s	The ContainerThreadSaftey value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Invariant

if m_root == nullptr
- m_nest == nullptr
- m_prev == nullptr
if m_prev == nullptr
- m_root->m_first = this;
if m_prev !- nullptr
- m_prev->m_root == m_root
- m_orev->m_next == this
if m_next == nullptr
- m_root->m_last = this
if m_next != nullptr
- m_next->m_root == m_root
- m_next->m_prev == this

See also: DListInRoot

Member Typedef Documentation

◆ C

template<ContainerThreadSafety s>

Container<s> ContainerNode< s >::C

privateinherited

The type of the Container that we are part of.

◆ Node

template<class R , class N , ContainerThreadSafety s, int n>

class DListInNode< R, N, s, n > DListInNode< R, N, s, n >::Node

private

Type of DListIInNode.

◆ Root

template<class R , class N , ContainerThreadSafety s, int n>

class DListInRoot< R, N, s, n > DListInNode< R, N, s, n >::Root

private

Type of DListInRoot.

Constructor & Destructor Documentation

◆ DListInNode() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

DListInNode< R, N, s, n >::DListInNode ( R * myRoot = nullptr )

Constructor.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot Pointer to list for node to be added to (if not NULL).

References DListInNode< R, N, s, n >::addTo().

Here is the call graph for this function:

◆ DListInNode() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

DListInNode< R, N, s, n >::DListInNode ( R & myRoot )

Constructor.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot list we are to be added to.

References DListInNode< R, N, s, n >::addTo().

Here is the call graph for this function:

◆ ~DListInNode()

template<class R , class N , ContainerThreadSafety s, int n>

DListInNode< R, N, s, n >::~DListInNode ( )

Destructor.

Remove us from list we are on, if any.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Member Function Documentation

◆ addAfter() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addAfter	(	N &	node,
		bool	upgrade = false )

inline

Add ourself to a list after another node.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add ourself after. If that node is not on a list, do nothing.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addAfter() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addAfter	(	N *	node,
		bool	upgrade = false )

inline

Add ourself to a list after another node.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add ourself after. If Node is NULL, or not on a list, do nothing.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addTo() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addTo	(	R &	myRoot,
		bool	upgrade = false )

Add ourself to a list at "natural" postion.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

Referenced by DListInNode< R, N, s, n >::DListInNode(), and DListInNode< R, N, s, n >::DListInNode().

Here is the caller graph for this function:

◆ addTo() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addTo	(	R *	myRoot,
		bool	upgrade = false )

Add ourself to a list at "natural" postion.

Note that this is the front for singly linked lists, and the end for doubly linked lists.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToEnd() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addToEnd	(	R &	myRoot,
		bool	upgrade = false )

inline

Add ourselfs to the end of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToEnd() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addToEnd	(	R *	myRoot,
		bool	upgrade = false )

inline

Add ourselfs to the End of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

If NULL, just remove from all lists.

◆ addToFront() [1/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addToFront	(	R &	myRoot,
		bool	upgrade = false )

inline

Add ourselves to the front of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addToFront() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::addToFront	(	R *	myRoot,
		bool	upgrade = false )

inline

Add ourselfs to the front of a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

myRoot	List to add to. If NULL, just remove from all lists.
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ check()

template<class R , class N , ContainerThreadSafety s, int n>

bool DListInNode< R, N, s, n >::check ( ) const

overridevirtual

Check a DListInNode.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Returns: true if check passes

Implements ContainerNode< s >.

Reimplemented in ManyManyLink< R, N, s, n, L >, ManyManyLink< R, N, s, n, ManyManyLink< R, N, s, n, void > >, and SortDListInNode< R, N, s, n >.

◆ next()

template<class R , class N , ContainerThreadSafety s, int n>

N * DListInNode< R, N, s, n >::next ( ) const

inline

Return pointer to next node on list.

References DListInNode< R, N, s, n >::m_next.

◆ prev()

template<class R , class N , ContainerThreadSafety s, int n>

N * DListInNode< R, N, s, n >::prev ( ) const

inline

Return pointer to previous node on list.

References DListInNode< R, N, s, n >::m_prev.

◆ readLock()

template<class R , class N , ContainerThreadSafety s, int n>

unsigned DListInNode< R, N, s, n >::readLock ( bool upgrade ) const

inline

References ContainerNode< s >::readLock().

Here is the call graph for this function:

◆ readUnlock()

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::readUnlock ( unsigned save ) const

inline

References ContainerNode< s >::readUnlock().

Here is the call graph for this function:

◆ remove()

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::remove ( )

inline

Remove node from whatever list it is on, if it is on a list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

◆ root()

template<class R , class N , ContainerThreadSafety s, int n>

R * DListInNode< R, N, s, n >::root ( ) const

inline

Return pointer to list we are on.

References DListInNode< R, N, s, n >::m_root.

Referenced by DListInNode< R, N, s, n >::setRoot().

Here is the caller graph for this function:

◆ setRoot() [1/2]

template<ContainerThreadSafety s>

void ContainerNode< s >::setRoot ( C * root )

inlineprotectedinherited

Set our Container.

Used to allow to Node to record what Container it is in. Used only if safety method need resources from the Container, like a Mutex

If an operation changes the root of a node, then it needs to save the original root to exit the critical section on that container that it entered before the operation.

Referenced by ContainerNode< s >::ContainerNode(), DListInNode< R, N, s, n >::setRoot(), ListInNode< R, N, s, n >::setRoot(), and TreeInNode< R, N, K, s, n >::setRoot().

Here is the caller graph for this function:

◆ setRoot() [2/2]

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::setRoot ( R * root )

inline

References DListInNode< R, N, s, n >::m_root, DListInNode< R, N, s, n >::root(), and ContainerNode< s >::setRoot().

Here is the call graph for this function:

◆ writeLock()

template<class R , class N , ContainerThreadSafety s, int n>

unsigned DListInNode< R, N, s, n >::writeLock ( bool upgrade ) const

inline

References ContainerNode< s >::writeLock().

Here is the call graph for this function:

◆ writeUnlock()

template<class R , class N , ContainerThreadSafety s, int n>

void DListInNode< R, N, s, n >::writeUnlock ( unsigned save ) const

inline

References ContainerNode< s >::writeUnlock().

Here is the call graph for this function:

Friends And Related Symbol Documentation

◆ DListInRoot< R, N, s, n >

template<class R , class N , ContainerThreadSafety s, int n>

friend class DListInRoot< R, N, s, n >

friend

Member Data Documentation

◆ m_next

template<class R , class N , ContainerThreadSafety s, int n>

N* DListInNode< R, N, s, n >::m_next

private

Pointer to net node on list.

Referenced by DListInNode< R, N, s, n >::next().

◆ m_prev

template<class R , class N , ContainerThreadSafety s, int n>

N* DListInNode< R, N, s, n >::m_prev

private

Pointer to previous node on list.

Referenced by DListInNode< R, N, s, n >::prev().

◆ m_root

template<class R , class N , ContainerThreadSafety s, int n>

R* DListInNode< R, N, s, n >::m_root

private

Pointer to list we are on.

Referenced by DListInNode< R, N, s, n >::root(), and DListInNode< R, N, s, n >::setRoot().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Types

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ C

◆ Node

◆ Root

Constructor & Destructor Documentation

◆ DListInNode() [1/2]

◆ DListInNode() [2/2]

◆ ~DListInNode()

Member Function Documentation

◆ addAfter() [1/2]

◆ addAfter() [2/2]

◆ addTo() [1/2]

◆ addTo() [2/2]

◆ addToEnd() [1/2]

◆ addToEnd() [2/2]

◆ addToFront() [1/2]

◆ addToFront() [2/2]

◆ check()

◆ next()

◆ prev()

◆ readLock()

◆ readUnlock()

◆ remove()

◆ root()

◆ setRoot() [1/2]

◆ setRoot() [2/2]

◆ writeLock()

◆ writeUnlock()

Friends And Related Symbol Documentation

◆ DListInRoot< R, N, s, n >

Member Data Documentation

◆ m_next

◆ m_prev

◆ m_root
