Node side of a many-many relationship. More...

#include <ManyMany.h>

Inheritance diagram for ManyManyNode< R, N, s, n, L >:

[legend]

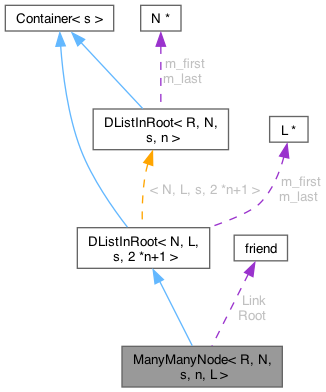

Collaboration diagram for ManyManyNode< R, N, s, n, L >:

[legend]

Public Member Functions
	ManyManyNode (R root=nullptr, L link=nullptr)

	~ManyManyNode ()

void	add (L &node, bool upgrade=false)
	Add node to our list, at "natural" point.

void	add (L *node, bool upgrade=false)
	Add node to our list, at "natural" point.

void	add (R &root, L &link)

void	add (R &root, L *link=nullptr)

void	add (R *root, L &link)

void	add (R root, L link=nullptr)

void	addFirst (L &node, bool upgrade=false)
	Add node to front of our list.

void	addFirst (L *node, bool upgrade=false)
	Add node to front of our list.

void	addFirst (R &root, L &link)

void	addFirst (R &root, L *link=nullptr)

void	addFirst (R *root, L &link)

void	addFirst (R root, L link=nullptr)

void	addLast (L &node, bool upgrade=false)
	Add node to end of our list.

void	addLast (L *node, bool upgrade=false)
	Add node to end of our list.

void	addLast (R &root, L &link)

void	addLast (R &root, L *link=nullptr)

void	addLast (R *root, L &link)

void	addLast (R root, L link=nullptr)

bool	check () const override
	Check a DListInRoot and the list connected.

L *	first () const

L *	last () const

unsigned	readLock (bool upgrade) const

unsigned	readLock () const

void	readUnlock (unsigned save) const

void	remove (L &node)
	Remove Node from List.

void	remove (L *node)
	Remove Node from List.

bool	remove (R &node)

bool	remove (R *node)

unsigned	writeLock (bool upgrade) const

unsigned	writeLock () const

void	writeUnlock (unsigned save) const

Private Types
typedef class DListInRoot< N, L, s, 2 *n+1 >	Base

typedef class ManyManyLink< R, N, s, n, L >	Link

typedef class ManyManyNode< R, N, s, n, L >	Node

typedef class ManyManyRoot< R, N, s, n, L >	Root

Private Attributes
friend	Link

L *	m_first
	Pointer to first node on list.

L *	m_last
	Pointer to last node on list.

friend	Root

Detailed Description

template<class R, class N, ContainerThreadSafety s, int n, class L>
class ManyManyNode< R, N, s, n, L >

Node side of a many-many relationship.

Invariant

From DListInRoot:

if first() == nullptr
- last() == nullptr
if first() !- nullptr
- last() != nullptr
- first()->root() == thiw
- first()->prev() == nullptr
- last()->root() == this
- last()->next() == nullptr

Member Typedef Documentation

◆ Base

template<class R , class N , ContainerThreadSafety s, int n, class L >

class DListInRoot< N, L, s, 2 *n+1 > ManyManyNode< R, N, s, n, L >::Base

private

◆ Link

template<class R , class N , ContainerThreadSafety s, int n, class L >

class ManyManyLink< R, N, s, n, L > ManyManyNode< R, N, s, n, L >::Link

private

◆ Node

template<class R , class N , ContainerThreadSafety s, int n, class L >

class ManyManyNode< R, N, s, n, L > ManyManyNode< R, N, s, n, L >::Node

private

◆ Root

template<class R , class N , ContainerThreadSafety s, int n, class L >

class ManyManyRoot< R, N, s, n, L > ManyManyNode< R, N, s, n, L >::Root

private

Constructor & Destructor Documentation

◆ ManyManyNode()

template<class R , class N , ContainerThreadSafety s, int n, class L >

ManyManyNode< R, N, s, n, L >::ManyManyNode	(	R *	root = nullptr,
		L *	link = nullptr )

◆ ~ManyManyNode()

template<class R , class N , ContainerThreadSafety s, int n, class L >

ManyManyNode< R, N, s, n, L >::~ManyManyNode ( )

Member Function Documentation

◆ add() [1/6]

void DListInRoot< N, L, s, n_ >::add	(	L &	node,
		bool	upgrade = false )

inlineinherited

Add node to our list, at "natural" point.

Note that this is the front for singly linked lists and the end for doubly linked list.

If node is currently on a list (even us) it is removed before being added to the list

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add to the list
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ add() [2/6]

void DListInRoot< N, L, s, n_ >::add	(	L *	node,
		bool	upgrade = false )

inlineinherited

Add node to our list, at "natural" point.

Note that this is the front for singly linked lists and the end for doubly linked lists.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add to the list If node is nulR, Nothing is done. If node is currently on a list (even us) it is removed before being added to the list
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ add() [3/6]

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyNode< R, N, s, n, L >::add	(	R &	root,
		L &	link )

◆ add() [4/6]

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyNode< R, N, s, n, L >::add	(	R &	root,
		L *	link = nullptr )

◆ add() [5/6]

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyNode< R, N, s, n, L >::add	(	R *	root,
		L &	link )

◆ add() [6/6]

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyNode< R, N, s, n, L >::add	(	R *	root,
		L *	link = nullptr )

◆ addFirst() [1/6]

void DListInRoot< N, L, s, n_ >::addFirst	(	L &	node,
		bool	upgrade = false )

inlineinherited

Add node to front of our list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add to the list If node is currently on a list (even us) it is removed before being added to the list
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInRoot)

◆ addFirst() [2/6]

void DListInRoot< N, L, s, n_ >::addFirst	(	L *	node,
		bool	upgrade = false )

inlineinherited

Add node to front of our list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add to the list If node is currently on a list (even us) it is removed before being added to the list
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInRoot)

◆ addFirst() [3/6]

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyNode< R, N, s, n, L >::addFirst	(	R &	root,
		L &	link )

◆ addFirst() [4/6]

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyNode< R, N, s, n, L >::addFirst	(	R &	root,
		L *	link = nullptr )

◆ addFirst() [5/6]

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyNode< R, N, s, n, L >::addFirst	(	R *	root,
		L &	link )

◆ addFirst() [6/6]

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyNode< R, N, s, n, L >::addFirst	(	R *	root,
		L *	link = nullptr )

◆ addLast() [1/6]

void DListInRoot< N, L, s, n_ >::addLast	(	L &	node,
		bool	upgrade = false )

inlineinherited

Add node to end of our list.

Note that this operation is O(n) on list current size. See DListInRoot to make this O(1).

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add to the list If node is currently on a list (even us) it is removed before being added to the list
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInRoot)

◆ addLast() [2/6]

void DListInRoot< N, L, s, n_ >::addLast	(	L *	node,
		bool	upgrade = false )

inlineinherited

Add node to end of our list.

Note that this operation is O(n) on list current size. See DListInRoot to make this O(1).

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add to the list If node is currently on a list (even us) it is removed before being added to the list
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInRoot)

◆ addLast() [3/6]

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyNode< R, N, s, n, L >::addLast	(	R &	root,
		L &	link )

◆ addLast() [4/6]

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyNode< R, N, s, n, L >::addLast	(	R &	root,
		L *	link = nullptr )

◆ addLast() [5/6]

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyNode< R, N, s, n, L >::addLast	(	R *	root,
		L &	link )

◆ addLast() [6/6]

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyNode< R, N, s, n, L >::addLast	(	R *	root,
		L *	link = nullptr )

◆ check()

template<class R , class N , ContainerThreadSafety s, int n, class L >

bool ManyManyNode< R, N, s, n, L >::check ( ) const

inlineoverridevirtual

Check a DListInRoot and the list connected.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Returns: true if check passes

Reimplemented from DListInRoot< N, L, s, 2 *n+1 >.

◆ first()

template<class R , class N , ContainerThreadSafety s, int n, class L >

L * ManyManyNode< R, N, s, n, L >::first ( ) const

inline

◆ last()

template<class R , class N , ContainerThreadSafety s, int n, class L >

L * ManyManyNode< R, N, s, n, L >::last ( ) const

inline

◆ readLock() [1/2]

unsigned DListInRoot< N, L, s, n >::readLock ( bool upgrade ) const

inlineinherited

◆ readLock() [2/2]

template<class R , class N , ContainerThreadSafety s, int n, class L >

unsigned ManyManyNode< R, N, s, n, L >::readLock ( ) const

inline

References Container< s >::readLock().

Here is the call graph for this function:

◆ readUnlock()

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyNode< R, N, s, n, L >::readUnlock ( unsigned save ) const

inline

References Container< s >::readUnlock().

Here is the call graph for this function:

◆ remove() [1/4]

void DListInRoot< N, L, s, n_ >::remove ( L & node )

inlineinherited

Remove Node from List.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	node to be removed.

If node is not on this list, nothing will be done.

◆ remove() [2/4]

void DListInRoot< N, L, s, n_ >::remove ( L * node )

inlineinherited

Remove Node from List.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	Pointer to node to be removed. If node is null, operation will be ignored. If node is not on this list, nothing will be done.

◆ remove() [3/4]

template<class R , class N , ContainerThreadSafety s, int n, class L >

bool ManyManyNode< R, N, s, n, L >::remove ( R & node )

◆ remove() [4/4]

template<class R , class N , ContainerThreadSafety s, int n, class L >

bool ManyManyNode< R, N, s, n, L >::remove ( R * node )

◆ writeLock() [1/2]

unsigned DListInRoot< N, L, s, n >::writeLock ( bool upgrade ) const

inlineinherited

◆ writeLock() [2/2]

template<class R , class N , ContainerThreadSafety s, int n, class L >

unsigned ManyManyNode< R, N, s, n, L >::writeLock ( ) const

inline

References Container< s >::writeLock().

Here is the call graph for this function:

◆ writeUnlock()

template<class R , class N , ContainerThreadSafety s, int n, class L >

void ManyManyNode< R, N, s, n, L >::writeUnlock ( unsigned save ) const

inline

References Container< s >::writeUnlock().

Here is the call graph for this function:

Member Data Documentation

◆ Link

template<class R , class N , ContainerThreadSafety s, int n, class L >

friend ManyManyNode< R, N, s, n, L >::Link

private

◆ m_first

L* DListInRoot< N, L, s, n >::m_first

privateinherited

Pointer to first node on list.

◆ m_last

L* DListInRoot< N, L, s, n >::m_last

privateinherited

Pointer to last node on list.

◆ Root

template<class R , class N , ContainerThreadSafety s, int n, class L >

friend ManyManyNode< R, N, s, n, L >::Root

private

The documentation for this class was generated from the following files:

Public Member Functions

Private Types

Private Attributes

Detailed Description

Member Typedef Documentation

◆ Base

◆ Link

◆ Node

◆ Root

Constructor & Destructor Documentation

◆ ManyManyNode()

◆ ~ManyManyNode()

Member Function Documentation

◆ add() [1/6]

◆ add() [2/6]

◆ add() [3/6]

◆ add() [4/6]

◆ add() [5/6]

◆ add() [6/6]

◆ addFirst() [1/6]

◆ addFirst() [2/6]

◆ addFirst() [3/6]

◆ addFirst() [4/6]

◆ addFirst() [5/6]

◆ addFirst() [6/6]

◆ addLast() [1/6]

◆ addLast() [2/6]

◆ addLast() [3/6]

◆ addLast() [4/6]

◆ addLast() [5/6]

◆ addLast() [6/6]

◆ check()

◆ first()

◆ last()

◆ readLock() [1/2]

◆ readLock() [2/2]

◆ readUnlock()

◆ remove() [1/4]

◆ remove() [2/4]

◆ remove() [3/4]

◆ remove() [4/4]

◆ writeLock() [1/2]

◆ writeLock() [2/2]

◆ writeUnlock()

Member Data Documentation

◆ Link

◆ m_first

◆ m_last

◆ Root
