Intrusive Singly Linked List, List. More...

#include <ListIn.h>

Inheritance diagram for ListInRoot< R, N, s, n >:

[legend]

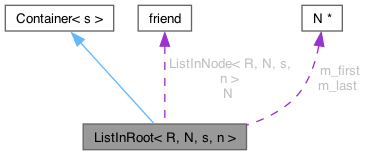

Collaboration diagram for ListInRoot< R, N, s, n >:

[legend]

Protected Member Functions
	ListInRoot ()
	Constructor.

	~ListInRoot ()
	Destructor.

void	add (N &node, bool upgrade=false)
	Add node to our list, at "natural" point.

void	add (N *node, bool upgrade=false)
	Add node to our list, at "natural" point.

void	addFirst (N &node, bool upgrade=false)
	Add node to front of our list.

void	addFirst (N *node, bool upgrade=false)
	Add node to front of our list.

void	addLast (N &node, bool upgrade=false)
	Add node to end of our list.

void	addLast (N *node, bool upgrade=false)
	Add node to end of our list.

bool	check () const override

N *	first () const
	Return pointer to first Node on list.

N *	last () const
	Return pointer to last Node on list.

unsigned	readLock (bool upgrade) const

void	readUnlock (unsigned save) const

void	remove (N &node)
	Remove Node from List.

void	remove (N *node)
	Remove Node from List.

unsigned	writeLock (bool upgrade) const

void	writeUnlock (unsigned save) const

Private Types
typedef ListInNode< R, N, s, n >	Node
	Type of ListInNode.

typedef ListInRoot< R, N, s, n >	Root
	Type of ListInRoot.

Private Attributes
friend	ListInNode< R, N, s, n >

N *	m_first
	Pointer to first Node on list.

N *	m_last
	Pointer to last Node on list.

friend	N

Detailed Description

template<class R, class N, ContainerThreadSafety s, int n>
class ListInRoot< R, N, s, n >

Intrusive Singly Linked List, List.

Template Parameters

R	The class that will be the owner of the List. Must derive from ListInRoot<R, N, n>
N	The class that will be the nodes of the List. Must derive from ListInNode<R, N, n>
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Invariant

if m_first == nullptr
- m_last == nullptr
if m_first !- nullptr
- m_last != nullotr
- m_first->m_root == this
- m_last->m_root == this
- m_last->m_next == nullptr

See also: ListInNode

Member Typedef Documentation

◆ Node

template<class R , class N , ContainerThreadSafety s, int n>

ListInNode<R, N, s, n> ListInRoot< R, N, s, n >::Node

private

Type of ListInNode.

◆ Root

template<class R , class N , ContainerThreadSafety s, int n>

ListInRoot<R, N, s, n> ListInRoot< R, N, s, n >::Root

private

Type of ListInRoot.

Constructor & Destructor Documentation

◆ ListInRoot()

template<class R , class N , ContainerThreadSafety s, int n>

ListInRoot< R, N, s, n >::ListInRoot ( )

protected

Constructor.

Starts us as an empty list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

◆ ~ListInRoot()

template<class R , class N , ContainerThreadSafety s, int n>

ListInRoot< R, N, s, n >::~ListInRoot ( )

protected

Destructor.

Removes all nodes attached to us.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Member Function Documentation

◆ add() [1/2]

template<class R , class N , ContainerThreadSafety s, int n_>

void ListInRoot< R, N, s, n_ >::add	(	N &	node,
		bool	upgrade = false )

inlineprotected

Add node to our list, at "natural" point.

Note that this is the front for singly linked lists and the end for doubly linked list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add to the list If node is currently on a list (even us) it is removed before being added to the list
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ add() [2/2]

template<class R , class N , ContainerThreadSafety s, int n_>

void ListInRoot< R, N, s, n_ >::add	(	N *	node,
		bool	upgrade = false )

inlineprotected

Add node to our list, at "natural" point.

Note that this is the front for singly linked lists and the end for doubly linked lists.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add to the list If node is nulR, Nothing is done. If node is currently on a list (even us) it is removed before being added to the list
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addFirst() [1/2]

template<class R , class N , ContainerThreadSafety s, int n_>

void ListInRoot< R, N, s, n_ >::addFirst	(	N &	node,
		bool	upgrade = false )

inlineprotected

Add node to front of our list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add to the list If node is currently on a list (even us) it is removed before being added to the list
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

References ListInNode< R, N, s, n >::m_next, ListInNode< R, N, s, n >::m_root, ListInNode< R, N, s, n >::remove(), and ListInNode< R, N, s, n >::setRoot().

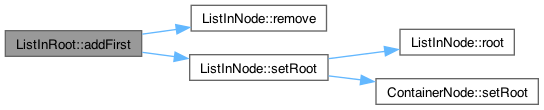

Here is the call graph for this function:

◆ addFirst() [2/2]

template<class R , class N , ContainerThreadSafety s, int n_>

void ListInRoot< R, N, s, n_ >::addFirst	(	N *	node,
		bool	upgrade = false )

inlineprotected

Add node to front of our list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add to the list If node is currently on a list (even us) it is removed before being added to the list
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ addLast() [1/2]

template<class R , class N , ContainerThreadSafety s, int n_>

void ListInRoot< R, N, s, n_ >::addLast	(	N &	node,
		bool	upgrade = false )

inlineprotected

Add node to end of our list.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided

Parameters

node	The node to add to the list If node is currently on a list (even us) it is removed before being added to the list
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

References ListInNode< R, N, s, n >::m_next, ListInNode< R, N, s, n >::m_root, ListInNode< R, N, s, n >::remove(), and ListInNode< R, N, s, n >::setRoot().

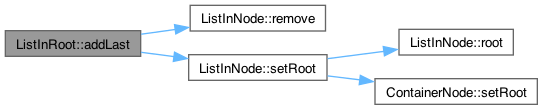

Here is the call graph for this function:

◆ addLast() [2/2]

template<class R , class N , ContainerThreadSafety s, int n_>

void ListInRoot< R, N, s, n_ >::addLast	(	N *	node,
		bool	upgrade = false )

inlineprotected

Add node to end of our list.

Note that this operation is O(n) on list current size. See DListInRoot to make this O(1).

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	The node to add to the list If node is currently on a list (even us) it is removed before being added to the list
upgrade	Set True if caller has an upgradable Read Lock (Used by SortDListInNode)

◆ check()

template<class R , class N , ContainerThreadSafety s, int n>

bool ListInRoot< R, N, s, n >::check ( ) const

overrideprotectedvirtual

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Returns: True if check passes

Implements Container< s >.

Reimplemented in SortListInRoot< R, N, s, n >.

References ListInNode< R, N, s, n >::check(), ListInNode< R, N, s, n >::next(), and ListInNode< R, N, s, n >::root().

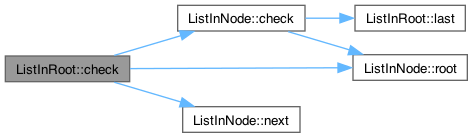

Here is the call graph for this function:

◆ first()

template<class R , class N , ContainerThreadSafety s, int n>

N * ListInRoot< R, N, s, n >::first ( ) const

inlineprotected

Return pointer to first Node on list.

References ListInRoot< R, N, s, n >::m_first.

◆ last()

template<class R , class N , ContainerThreadSafety s, int n>

N * ListInRoot< R, N, s, n >::last ( ) const

inlineprotected

Return pointer to last Node on list.

References ListInRoot< R, N, s, n >::m_last.

Referenced by ListInNode< R, N, s, n >::check().

Here is the caller graph for this function:

◆ readLock()

template<class R , class N , ContainerThreadSafety s, int n>

unsigned ListInRoot< R, N, s, n >::readLock ( bool upgrade ) const

inlineprotected

References Container< s >::readLock().

Here is the call graph for this function:

◆ readUnlock()

template<class R , class N , ContainerThreadSafety s, int n>

void ListInRoot< R, N, s, n >::readUnlock ( unsigned save ) const

inlineprotected

References Container< s >::readUnlock().

Here is the call graph for this function:

◆ remove() [1/2]

template<class R , class N , ContainerThreadSafety s, int n_>

void ListInRoot< R, N, s, n_ >::remove ( N & node )

inlineprotected

Remove Node from List.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	node to be removed. If node is not on this list, nothing will be done.

References ListInNode< R, N, s, n >::m_root, and ListInNode< R, N, s, n >::remove().

Here is the call graph for this function:

◆ remove() [2/2]

template<class R , class N , ContainerThreadSafety s, int n_>

void ListInRoot< R, N, s, n_ >::remove ( N * node )

inlineprotected

Remove Node from List.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Parameters

node	Pointer to node to be removed. If node is null, operation will be ignored. If node is not on this list, nothing will be done.

◆ writeLock()

template<class R , class N , ContainerThreadSafety s, int n>

unsigned ListInRoot< R, N, s, n >::writeLock ( bool upgrade ) const

inlineprotected

References Container< s >::writeLock().

Here is the call graph for this function:

◆ writeUnlock()

template<class R , class N , ContainerThreadSafety s, int n>

void ListInRoot< R, N, s, n >::writeUnlock ( unsigned save ) const

inlineprotected

References Container< s >::writeUnlock().

Here is the call graph for this function:

Member Data Documentation

◆ ListInNode< R, N, s, n >

template<class R , class N , ContainerThreadSafety s, int n>

friend ListInRoot< R, N, s, n >::ListInNode< R, N, s, n >

private

◆ m_first

template<class R , class N , ContainerThreadSafety s, int n>

N* ListInRoot< R, N, s, n >::m_first

private

Pointer to first Node on list.

Referenced by ListInRoot< R, N, s, n >::first(), and ListInNode< R, N, s, n >::remove().

◆ m_last

template<class R , class N , ContainerThreadSafety s, int n>

N* ListInRoot< R, N, s, n >::m_last

private

Pointer to last Node on list.

Referenced by ListInRoot< R, N, s, n >::last(), and ListInNode< R, N, s, n >::remove().

◆ N

template<class R , class N , ContainerThreadSafety s, int n>

friend ListInRoot< R, N, s, n >::N

private

The documentation for this class was generated from the following files:

Protected Member Functions

Private Types

Private Attributes

Detailed Description

Member Typedef Documentation

◆ Node

◆ Root

Constructor & Destructor Documentation

◆ ListInRoot()

◆ ~ListInRoot()

Member Function Documentation

◆ add() [1/2]

◆ add() [2/2]

◆ addFirst() [1/2]

◆ addFirst() [2/2]

◆ addLast() [1/2]

◆ addLast() [2/2]

◆ check()

◆ first()

◆ last()

◆ readLock()

◆ readUnlock()

◆ remove() [1/2]

◆ remove() [2/2]

◆ writeLock()

◆ writeUnlock()

Member Data Documentation

◆ ListInNode< R, N, s, n >

◆ m_first

◆ m_last

◆ N
