AATreeInRoot< R, N, K, s, n > Class Template Reference

Intrusive Binary Tree, Root. More...

#include <AATreeIn.h>

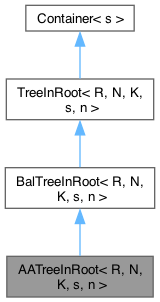

Inheritance diagram for AATreeInRoot< R, N, K, s, n >:

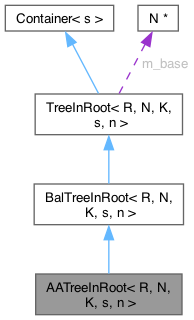

Collaboration diagram for AATreeInRoot< R, N, K, s, n >:

Public Member Functions
bool	check () const override
unsigned	readLock (bool upgrade) const
unsigned	writeLock (bool upgrade) const

Protected Member Functions
	AATreeInRoot ()
	Constructor.
virtual	~AATreeInRoot ()
	Destructor.
virtual void	add (N &node)
	Add node to our tree, note trees are sorted by the compare member function which needs to be implemented by the user.
void	add (N *node)
	Add node to our tree.
N *	base () const
int	compare (N const &node1, N const &node2) const
int	compareKey (N const &node, K key) const
N *	find (K key) const
	find a node
N *	findMinus (K key) const
	find a node, or the node that would be just lower than this node
N *	findPlus (K key) const
	find a node, r the node that would be just above this node.
N *	first () const
N *	last () const
unsigned	readLock () const
void	readUnlock (unsigned save) const
void	remove (N &node)
	Remove Node from List.
void	remove (N *node)
	Remove Node from List.
unsigned	writeLock () const
void	writeUnlock (unsigned save) const

Private Types
typedef class BalTreeInRoot< R, N, K, s, n >	Base
typedef class AATreeInNode< R, N, K, s, n >	Node
	Type of DListIInNode.
typedef class AATreeInRoot< R, N, K, s, n >	Root
	Type of TreeInRoot.

Private Attributes
N *	m_base
	Pointer to root node on tree.

Friends
class	AATreeInNode< R, N, K, s, n >

Detailed Description

template<class R, class N, class K, ContainerThreadSafety s, int n>
class AATreeInRoot< R, N, K, s, n >

Intrusive Binary Tree, Root.

Template Parameters

R	The class that will be the owner of the Tree. Must derive from TreeInRoot<R, N, K, n>
N	The class that will be the nodes of the Tree. Must derive from TreeInNode<R, N, K, n>
K	The class defining the Key used to lookup Nodes in the tree.
s	The ContainerThreadSafety value to define the thread safety model of the Container
n	A numerical parameter to allow a give List/Node combination to have multiple list-node relationships. Defaults to 0 if not provided.

Invariant

From TreeIn:

• if m_base != nullptr:
  • m_base-> m_root == this
  • m_base-> m_parent == nullptr

See also

TreeInNode

Member Typedef Documentation

Base

template<class R , class N , class K , ContainerThreadSafety s, int n>

class BalTreeInRoot< R, N, K, s, n > AATreeInRoot< R, N, K, s, n >::Base

private

Node

template<class R , class N , class K , ContainerThreadSafety s, int n>

class AATreeInNode< R, N, K, s, n > AATreeInRoot< R, N, K, s, n >::Node

private

Type of DListIInNode.

Root

template<class R , class N , class K , ContainerThreadSafety s, int n>

class AATreeInRoot< R, N, K, s, n > AATreeInRoot< R, N, K, s, n >::Root

private

Type of TreeInRoot.

Constructor & Destructor Documentation

AATreeInRoot()

template<class R , class N , class K , ContainerThreadSafety s, int n>

AATreeInRoot< R, N, K, s, n >::AATreeInRoot ( )

protected

Constructor.

Starts us as an empty list.

~AATreeInRoot()

template<class R , class N , class K , ContainerThreadSafety s, int n>

AATreeInRoot< R, N, K, s, n >::~AATreeInRoot ( )

protectedvirtual

Destructor.

Removes all nodes attached to us.

Doesn't actually call remove on every node to avoid possible unneeded rebalencing, just manually unlinks all nodes.

Member Function Documentation

add() [1/2]

template<class R , class N , class K , ContainerThreadSafety s, int n>

void TreeInRoot< R, N, K, s, n >::add ( N & node )

inlineprotectedvirtualinherited

Add node to our tree, note trees are sorted by the compare member function which needs to be implemented by the user.

Parameters

node	The node to add to the list If node is currently on a different list it is removed before being added to the list.

If node is on the requested list, do nothing. If trying to change value and position, use resort

add() [2/2]

template<class R , class N , class K , ContainerThreadSafety s, int n_>

void TreeInRoot< R, N, K, s, n_ >::add ( N * node )

inlineprotectedinherited

Add node to our tree.

Parameters

node	The node to add to the list If node is null, Nothing is done. If node is currently on a list (even us) it is removed before being added to the list

base()

template<class R , class N , class K , ContainerThreadSafety s, int n>

N * AATreeInRoot< R, N, K, s, n >::base ( ) const

inlineprotected

check()

template<class R , class N , class K , ContainerThreadSafety s, int n>

bool BalTreeInRoot< R, N, K, s, n >::check ( ) const

inlineoverridevirtualinherited

Implements Container< s >.

compare()

template<class R , class N , class K , ContainerThreadSafety s, int n>

int AATreeInRoot< R, N, K, s, n >::compare ( N const & node1, N const & node2 ) const

inlineprotected

compareKey()

template<class R , class N , class K , ContainerThreadSafety s, int n>

int AATreeInRoot< R, N, K, s, n >::compareKey ( N const & node, K key ) const

inlineprotected

find()

template<class R , class N , class K , ContainerThreadSafety s, int n>

N * TreeInRoot< R, N, K, s, n >::find ( K key ) const

protectedinherited

find a node

findMinus()

template<class R , class N , class K , ContainerThreadSafety s, int n>

N * TreeInRoot< R, N, K, s, n >::findMinus ( K key ) const

protectedinherited

find a node, or the node that would be just lower than this node

findPlus()

template<class R , class N , class K , ContainerThreadSafety s, int n>

N * TreeInRoot< R, N, K, s, n >::findPlus ( K key ) const

protectedinherited

find a node, r the node that would be just above this node.

first()

template<class R , class N , class K , ContainerThreadSafety s, int n>

N * AATreeInRoot< R, N, K, s, n >::first ( ) const

inlineprotected

last()

template<class R , class N , class K , ContainerThreadSafety s, int n>

N * AATreeInRoot< R, N, K, s, n >::last ( ) const

inlineprotected

readLock() [1/2]

template<class R , class N , class K , ContainerThreadSafety s, int n>

unsigned AATreeInRoot< R, N, K, s, n >::readLock ( ) const

inlineprotected

References Container< s >::readLock().

Here is the call graph for this function:

readLock() [2/2]

template<class R , class N , class K , ContainerThreadSafety s, int n>

unsigned BalTreeInRoot< R, N, K, s, n >::readLock ( bool upgrade ) const

inlineinherited

References Container< s >::readLock().

Here is the call graph for this function:

readUnlock()

template<class R , class N , class K , ContainerThreadSafety s, int n>

void AATreeInRoot< R, N, K, s, n >::readUnlock ( unsigned save ) const

inlineprotected

remove() [1/2]

template<class R , class N , class K , ContainerThreadSafety s, int n>

void TreeInRoot< R, N, K, s, n >::remove ( N & node )

inlineprotectedinherited

Remove Node from List.

Parameters

node	node to be removed. If node is not on this list, nothing will be done.

remove() [2/2]

template<class R , class N , class K , ContainerThreadSafety s, int n_>

void TreeInRoot< R, N, K, s, n_ >::remove ( N * node )

inlineprotectedinherited

Remove Node from List.

Parameters

node	Pointer to node to be removed. If node is null, operation will be ignored. If node is not on this list, nothing will be done.

writeLock() [1/2]

template<class R , class N , class K , ContainerThreadSafety s, int n>

unsigned AATreeInRoot< R, N, K, s, n >::writeLock ( ) const

inlineprotected

References Container< s >::writeLock().

Here is the call graph for this function:

writeLock() [2/2]

template<class R , class N , class K , ContainerThreadSafety s, int n>

unsigned BalTreeInRoot< R, N, K, s, n >::writeLock ( bool upgrade ) const

inlineinherited

References Container< s >::writeLock().

Here is the call graph for this function:

writeUnlock()

template<class R , class N , class K , ContainerThreadSafety s, int n>

void AATreeInRoot< R, N, K, s, n >::writeUnlock ( unsigned save ) const

inlineprotected

References Container< s >::writeUnlock().

Here is the call graph for this function:

Friends And Related Symbol Documentation

AATreeInNode< R, N, K, s, n >

template<class R , class N , class K , ContainerThreadSafety s, int n>

friend class AATreeInNode< R, N, K, s, n >

friend

Member Data Documentation

m_base

template<class R , class N , class K , ContainerThreadSafety s, int n>

N* TreeInRoot< R, N, K, s, n >::m_base

privateinherited

Pointer to root node on tree.

Referenced by TreeInRoot< R, N, K, s, n >::base().

---

The documentation for this class was generated from the following files:

• AATreeIn.h
• AATreeIn.hpp
